OmniVision OV9282 · 1.0MP 1/4" global-shutter CMOS image sensor
OV9282 Sensor Specifications & Compatible M12 and C-Mount Lenses

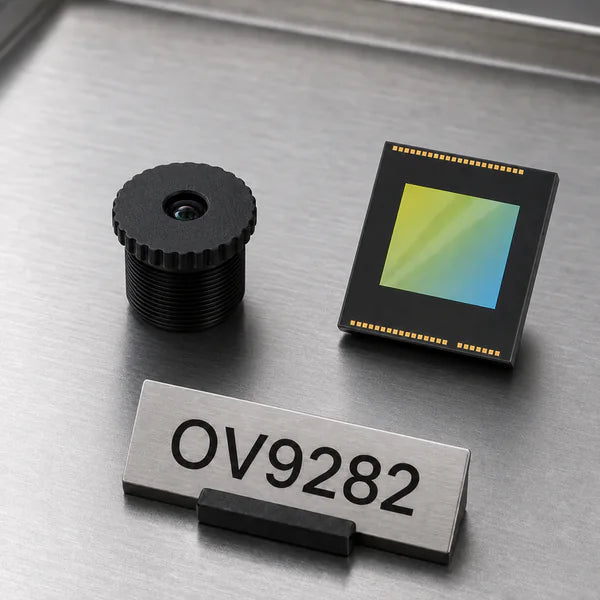

OV9282 is an OmniVision 1/4-inch global-shutter CMOS image sensor in the OmniPixel3-GS family, built for machine vision and motion capture. It is a 1MP 1280x800 monochrome sensor with NIR sensitivity and 3um pixels, hitting 120 fps over MIPI CSI-2 or DVP for distortion-free fast-motion imaging. Commonlands pairs M12 Lenses to its 4.53mm image circle and calculates the horizontal, vertical, and diagonal field of view.
OV9282 specifications
| Part number | OV9282 |
|---|---|
| 製造元 | オムニビジョン |
| Family | OmniPixel3-GS |
| 決議 | 1280×800（1.0 MP） |
| 光学フォーマット | 1/4インチ |
| Active area | 3.84 × 2.4 mm |
| Sensor diagonal | 4.53 mm |
| ピクセルサイズ | 3.0 µm |
| シャッター | グローバル |
| 最大フレームレート | 120 fps |
| インターフェース | MIPI CSI-2 / DVP/パラレル |
| Color / mono | Mono |
| 近赤外応答 | Enhanced near-infrared |
Manufacturer datasheet: OmniVision OV9282 product page
Lens selection for the OV9282 with calculated field of view
Each field of view below is calculated for the OV9282 active area (3.84 × 2.4 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists focal length, mount, aperture (F#), and coverage. Follow the product links for distortion, ingress protection, dimensions, and resolution specifications. Coverage compares the lens image circle with the 4.53 mm sensor diagonal. Entries marked Circular image do not cover the full diagonal; part of the sensor lies outside the image circle. Run working-distance and object-size numbers through the field of view calculator.
Engineering picks for the OV9282
- Best ~30° HFoV: 7.2mm M12 Lens (CIL872) (7.2 mm, f/2.8). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the OV9282: 30° H × 19° V (35° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: Wide-Angle 3.6mm M12 Lens (CIL337) (3.6 mm, f/1.6). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the OV9282: 63° H × 39° V (76° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Fisheye 1.8mm M12 Lens (CIL220) (1.8 mm, f/2.3). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the OV9282: 122° H × 76° V (144° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Lowest distortion: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: measured -0.5% TV distortion, the flattest image among covering lenses. Field of view on the OV9282: 47° H × 31° V (55° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the OV9282: 27° H × 17° V (32° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Find a lens for the OV9282 in the M12 Lens collection or the C-Mount Lens collection. The covering options below run from 0.8 mm to 100 mm focal length and span 2° to 198° horizontal field of view on the OV9282 active area.
Covers in the table means the lens image circle is at least as large as the 4.53 mm sensor diagonal. Confirm corner illumination and MTF at your aperture, wavelength, and working distance. A complete circular fisheye image fits inside the sensor only when its diameter is no larger than the sensor's short side. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the OV9282
Start from the field of view and working distance your application needs. Confirm that the lens image circle covers the active sensor diagonal and that the mount provides the required focus travel and rear clearance. A lens megapixel rating alone does not establish resolution on this sensor. Compare measured MTF at the spatial frequencies your task needs, at the intended aperture, wavelength, distance, and field position, accounting for the 3.0 µm pixel pitch. Estimate framing with the Commonlands field of view calculator.
Sourcing a camera module around the OV9282? Commonlands manufactures M12 lenses and C-mount lenses and ships from San Diego, with same-day shipping on in-stock lenses ordered before 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the OV9282 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned OV9282 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
OV9282 lens and camera module FAQ
What lens fits the OV9282 sensor?
A lens match requires sufficient image-circle coverage, suitable MTF, and mechanical clearance. Use the coverage column and calculated field of view to shortlist lenses, then verify the operating conditions on each product page.
What is the OV9282 sensor size?
The OV9282 is a 1/4" format sensor with a 3.84 × 2.4 mm active area and a 4.53 mm diagonal, built on 3.0 µm pixels at 1280x800 resolution.
Does Commonlands build a custom MIPI camera module for the OV9282?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the OV9282 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your OV9282 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
Match a lens to your OV9282 camera
Get an engineer-verified lens recommendation for your sensor, format, and field of view.
