IMX490やOS08A10など、2/3インチまでの4.5mm M12レンズ

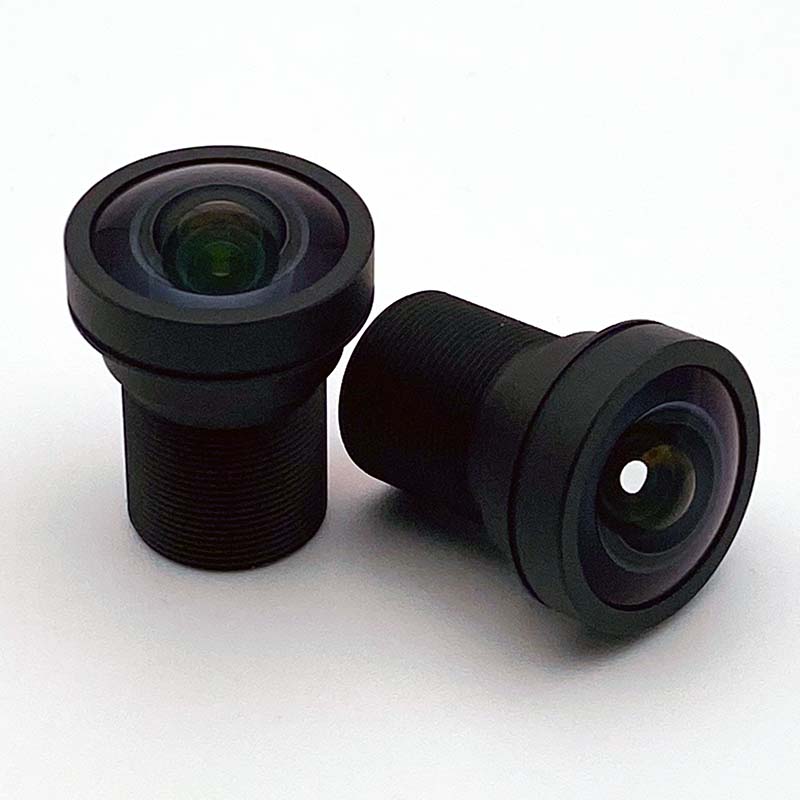

広角4.5mm M12レンズ
In stock — orders before 12 PM PST ship same day
レンズの特徴
Low F/#
All-glass all-metal design, with <0.1% FΘ distortion.
IP69Kバリエーションあり
Variant “B” is IP69K for exterior applications and dust / water resistance.
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL344 |
| イーエフエル | 4.5 |
| F# | 1.9, 2.7 |
| 決議 | F/1.9: 3MP, 4.2μm F/2.7: 12MP, 2.2μm |
| 視野 | 125° @ 11.0mm image circle — Calculate FoV for your sensor |
| イメージサークル | 11.4mm |
| ディストーション | -3% F-Θ @11.0mm |
| 重量 | 8.0g |
| IRカットフィルター | オプション |
| 建設 | オールガラス、アルミニウム |
メカニカル・バリエーション
| バリアント | 説明 |
|---|---|
| M12A | イングレスプロテクションなし、レンズ1表面1にBBAR、AL6061キャップ+バレル |
メカニカル・レイアウト
カメラ・メカニカル互換性表
| カメラ/マウント | 互換性 |
|---|---|
| Commonlands CLA024 | CLA024 |
| イーコンシステムズ Sマウント | 12mm-15mmトールホルダー |
| アライドビジョン アルビウムSマウント | はい |
| FLIR Blackfly S ボード | はい |
| iDS uEye LE | Rev1.1：はい、Rev1.2: はい |
| イメージング・ソース M12 | はい |
| バスラー・ダートSマウント | はい |
*カメラメーカーが提供する標準M12x0.5レンズマウントを前提とした機械的互換性のみ。光学的な互換性は別途ご確認ください。
Frequently asked questions
What sensors work with the CIL344 4.5mm M12 lens?
Covers sensors up to 2/3″ format including the Sony IMX490 and OmniVision OS08A10. The 11.4mm image circle supports 1/1.8″ and 2/3″ sensors with margin.
What is the difference between the F/1.9 and F/2.7 CIL344 variants?
F/2.7 resolves 12MP at 2.2μm pixel pitch for high-resolution inspection. F/1.9 resolves 3MP at 4.2μm pixel pitch and collects roughly twice the light, which makes more sense for low-light robotics and drone work.
Is the CIL344 IP69K rated for outdoor use?
Yes. The M12B variant is IP69K rated for washdown, outdoor, and dusty environments. The standard M12A variant has no ingress protection.
What lens holder does the CIL344 use?
Uses the Commonlands CLA024 lens holder with 22mm hole spacing and 12mm height. e-con Systems boards need a 12–15mm tall holder instead.
Does the CIL344 ship same day from the US?
Yes. Commonlands ships all in-stock lenses same day from San Diego for orders placed before 12 PM PST.
How much distortion does the CIL344 have?
-3% F-Theta distortion measured at the 11.0mm image circle. For a wide-angle lens, that's moderate. Decide whether your application can live with it or whether you want software correction.
