75mm IR Corrected M12 Lens for Long-Range 1/1.6" Cameras Such as IMX676

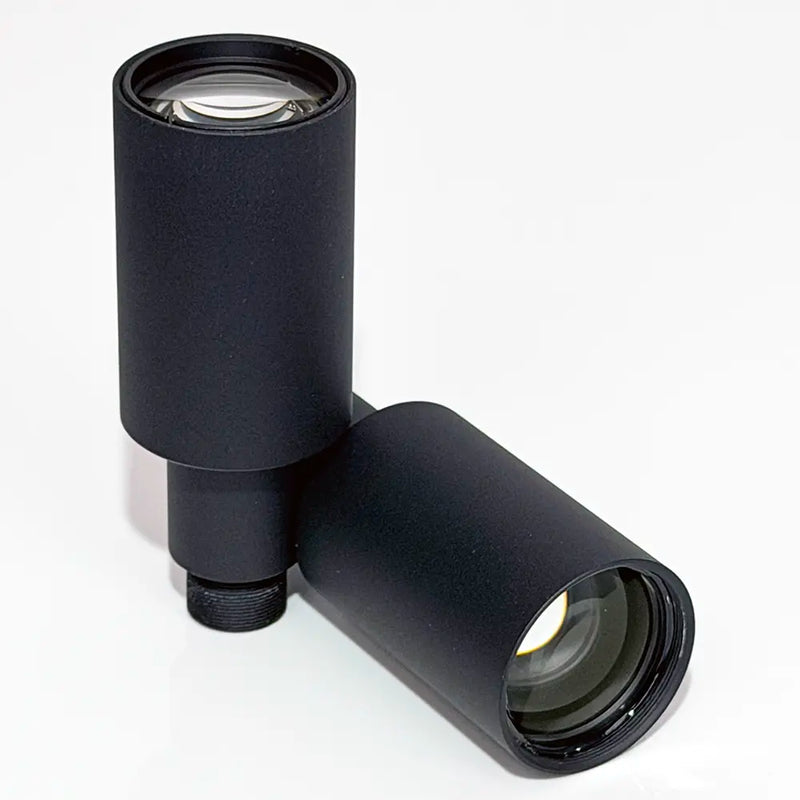

75mm M12 Lens IR Corrected
The CIL076 is an IR Corrected 75mm M12 lens (S-Mount Lens) for up to 1/1.7" 12MP sensors. The MTF and IR correction make this lens great for long distance viewing applications.
In stock — orders before 12 PM PST ship same day
レンズの特徴
IR修正
10um shift from VIS to NIR
12MP 1/1.8\"
Sharp images for demanding 2.4um pixel size
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL076 |
| イーエフエル | 75.0 |
| F# | 3.4 |
| 決議 | 12MP-14MP (1.55μm) |
| 視野 | 6° @ 7.8mm image circle — Calculate FoV for your sensor |
| イメージサークル | 9.3mm as-designed 11.0mm maximum |
| ディストーション | -0.4% TV@ 9.3mm |
| 重量 | 55g |
| IRカットフィルター | オプション |
| 建設 | オールガラス |
| チーフ・レイ・アングル | 5° |
メカニカル・バリエーション
| バリアント | 説明 |
|---|---|
| M12A | IP65-rated |
メカニカル・レイアウト
カメラ・メカニカル互換性表
| カメラ/マウント | 互換性 |
|---|---|
| イーコンシステムズ | 高さ12～15mmのマウント |
| D3エンジニアリング | はい |
| iDS XLS | いいえ |
| アライドビジョン | はい |
| バスラー・ダート | はい |
| イメージング・ソースM12マウント | はい |
| Raspberry Pi HQ M12マウント | いいえ |
*カメラメーカーが提供する標準M12x0.5レンズマウントを前提とした機械的互換性のみ。光学的な互換性は別途ご確認ください。
Frequently asked questions
What is the longest focal length M12 lens available?
The CIL076 at 75mm is the longest focal length M12 lens in the Commonlands catalog. For longer focal lengths, a C-mount or CS-mount lens is required.
Can the CIL076 75mm M12 lens read license plates at long range?
Yes. The 75mm focal length provides a 5-degree field of view that resolves license plates beyond 50 meters depending on sensor resolution and plate size. IR correction supports nighttime plate reading with 850nm illumination.
What does IR corrected mean on the CIL076 75mm S-mount lens?
IR corrected means the CIL076 maintains sharp focus from visible wavelengths through 850nm near-infrared. Without IR correction, a lens shifts focus when illumination changes from visible to NIR light, producing blurry images in day/night camera systems.
What sensors are compatible with the 75mm M12 lens?
The CIL076 75mm M12 lens supports sensors up to 1/1.6 inch format including the Sony IMX676 at 12MP resolution.
Does the CIL076 75mm M12 lens ship from the United States?
Yes. Commonlands ships all in-stock lenses same day from San Diego, California for orders placed before 12 PM PST.
Is volume pricing available for the CIL076?
Yes. Contact Commonlands for volume pricing on orders of 100 units or more. Production quantities ship with lot traceability and engineering support.
