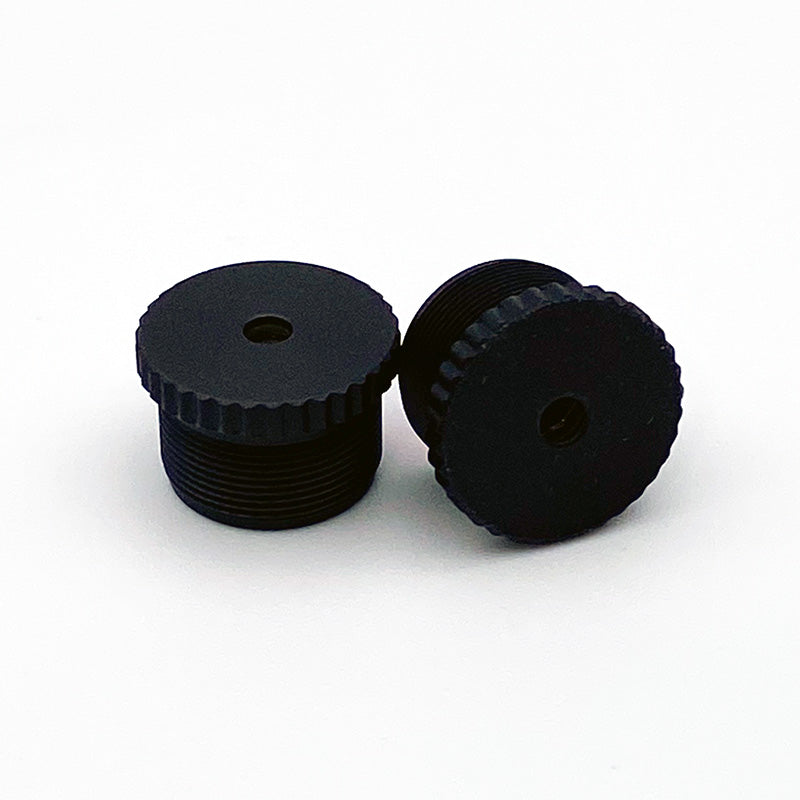

7mm M12 Lens for 1/2" sensors such as MT9P031
低ディストーション7.2mm M12レンズ
In stock — orders before 12 PM PST ship same day
レンズの特徴
コンパクトなフォームファクター
軽量または隠れた用途向けの小型サイズ
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL872 |
| イーエフエル | 7.2 |
| F# | 2.8 |
| 決議 | 5MP, 2.2μm |
| 視野 | 48° @ 6.3mm — Calculate FoV for your sensor |
| イメージサークル | 8.0mm |
| ディストーション | '<1% TV |
| 重量 | 2g |
| IRカットフィルター | P/N With: CIL872-F2.8-M12A650 P/N Without: CIL872-F2.8-M12ANIR |
| 建設 | ハイブリッドガラス/プラスチック、AL6061バレル付き |
メカニカル・バリエーション
| バリアント | 説明 |
|---|---|
| M12A | イングレスプロテクションなし、レンズ1表面1にBBAR、AL6061キャップ+バレル |
メカニカル・レイアウト
カメラ・メカニカル互換性表
| カメラ/マウント | 互換性 |
|---|---|
| Commonlands CLA018 | CLA018 |
| Commonlands CLA021 | CLA021付き |
| イーコンシステムズ Sマウント | いいえ |
| アライドビジョン アルビウムSマウント | いいえ |
| FLIR Blackfly S ボード | Rev1.1：いいえ、Rev1.2: いいえ |
| iDS uEye LE | いいえ |
| イメージング・ソース M12 | Please submit Inquiry to Basler |
| バスラー・ダートSマウント | — |
*カメラメーカーが提供する標準M12x0.5レンズマウントを前提とした機械的互換性のみ。光学的な互換性は別途ご確認ください。
Frequently asked questions
What sensors work with the CIL872 7mm M12 lens?
The CIL872 is made for 1/2″ sensors like the ON Semiconductor MT9P031, and it resolves 5MP at 2.2μm pixel pitch. The 8.0mm image circle covers 1/2″ format with margin.
How much distortion does the CIL872 have?
The CIL872 has less than 1% TV distortion. That is low enough for barcode scanning, dimensional measurement, and machine vision inspection without software correction in many setups.
What is the CIL872 image circle and field of view?
The CIL872 produces an 8.0mm image circle with a 48° diagonal field of view measured at the 6.3mm active area. Use the calculator at field of view calculator to model your specific sensor.
What lens holder does the CIL872 use?
The CIL872 works with the Commonlands CLA018 holder and other compatible mounts. For e-con Systems boards, pair it with the CLA021 adapter.
Does the CIL872 come with an IR cut filter?
Two variants are available. CIL872-F2.8-M12A650 includes a 650nm IR cut filter for standard daylight use, and CIL872-F2.8-M12ANIR ships without a filter for NIR-sensitive applications.
Does the CIL872 ship same day from San Diego?
Yes. Commonlands ships the CIL872 same day from San Diego for orders placed before 12 PM PST.
Similar M12 Lenses (S-Mount Lenses) for Embedded Machine Vision
コモンランドについて
Commonlands LLC designs and manufactures precision M12, C-mount, and M8 lenses for machine vision, robotics, and embedded camera systems. Based in San Diego, California, we stock inventory for same-day shipping and provide direct access to US-based optical engineers. Whether you need a single prototype lens or production volumes of 25,000+, our team supports the full lifecycle from optical design consultation through volume fulfillment.
Need help selecting the right lens for your camera module?
Contact our US-based Optical Engineers.
