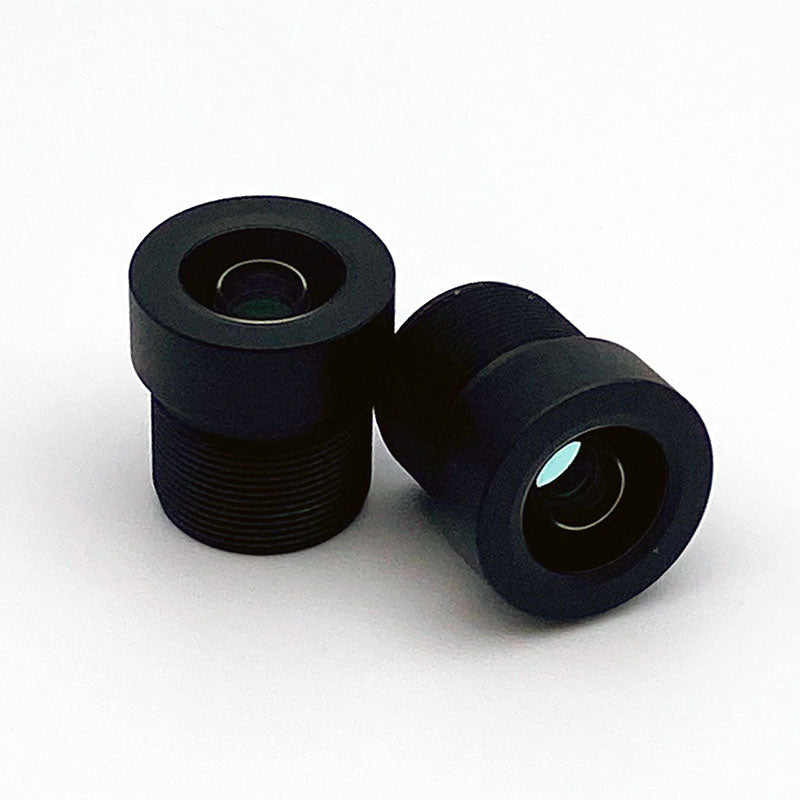

6mm Automotive M12 Lens \| For up to 3MP sensors with 3um pixels such as AR0234, IMX290, IMX291
高速6mm M12レンズ
In stock — orders before 12 PM PST ship same day
レンズの特徴
熱処理
30℃～75℃の動作温度に対応。
IP69K定格
“B” Variant is IP69K rated for the toughest environments.
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL061 |
| イーエフエル | 6.0 |
| F# | 1.9 |
| 視野 | 66° @ 7.0mm image circle — Calculate FoV for your sensor |
| イメージサークル | 7.0mm |
| ディストーション | -8% / -5% テレビ |
| 重量 | 5g |
| IRカットフィルター | P/N With: CIL061-F1.9-M12B650 P/N Without: CIL061-F1.9-M12BNIR |
| 建設 | アルミニウム・バレル付きオールガラス |
メカニカル・バリエーション
| バリアント | 説明 |
|---|---|
| M12A | イングレスプロテクションなし、レンズ1表面1にBBAR、AL6061キャップ+バレル |
| M12B | IP69K、レンズ表面1にBBAR、AL6061キャップ+バレル |
メカニカル・レイアウト
カメラ・メカニカル互換性表
| カメラ/マウント | 互換性 |
|---|---|
| Commonlands CLA019 | — |
| イーコンシステムズ Sマウント | — |
| アライドビジョン アルビウムSマウント | — |
| FLIR Blackfly S ボード | — |
| iDS uEye LE | — |
| イメージング・ソース M12 | — |
| D3カメラモジュール | — |
*カメラメーカーが提供する標準M12x0.5レンズマウントを前提とした機械的互換性のみ。光学的な互換性は別途ご確認ください。
Frequently asked questions
What sensors work with the CIL061 6mm M12 lens?
The CIL061 covers 1/2.5 inch sensors up to 3MP at 3μm pixel pitch, including the ON Semiconductor AR0234 and Sony IMX290/IMX291. The 7.0mm image circle fully covers those formats.
How much distortion does the CIL061 have?
The CIL061 has -8% rectilinear distortion and -5% TV distortion. That level is usually acceptable for ADAS surround-view and general machine vision, but precision metrology work may still want software correction.
What is the difference between CIL061 M12A and M12B variants?
The M12A variant is the standard version with no ingress protection. The M12B variant adds IP69K sealing for automotive, agricultural, and washdown environments, and both variants use the same optics and accept optional 650nm IR cut filters.
Is the CIL061 suitable for automotive and ADAS applications?
Yes. The CIL061 is athermalized for -30°C to 75°C operation, which covers the full automotive temperature range. The all-glass construction also avoids the thermal focus shift common in plastic-element lenses used outdoors. Check working distances with our depth of field calculator at depth of field calculator
Does the CIL061 6mm M12 lens ship from the United States?
Yes. Commonlands ships all in-stock lenses same day from San Diego, California for orders placed before 12 PM PST.
Are mechanical drawings and 3D models available for the CIL061?
Yes. 3D STP models and mechanical drawings are available on the product page and by request to engineering@commonlands.com for CAD integration.
