Sony image sensor · STARVIS
IMX290 sensor specifications and
compatible M12 lenses & C-mount lenses

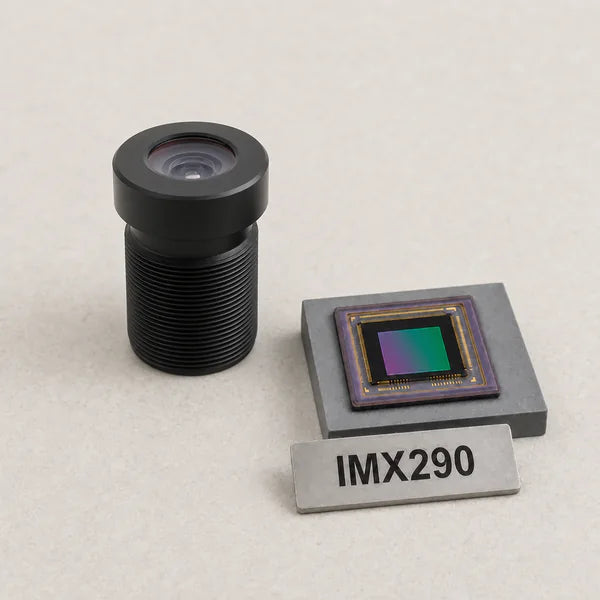

IMX290 is a Sony 1/2.8-inch rolling-shutter CMOS image sensor from the STARVIS family, engineered for low-light and NIR imaging. It outputs 1920x1080 (2.1 MP) at 120 fps over MIPI CSI-2, LVDS, or parallel interfaces, with 2.9 um pixels on a 6.39 mm diagonal. Commonlands matches M12 Lenses to its image circle and reports the calculated horizontal, vertical, and diagonal field of view.
IMX290 specifications
| Part number | IMX290 |
|---|---|
| Manufacturer | Sony |
| Family | STARVIS |
| 決議 | 1920x1080 (2.1 MP) |
| Optical format | 1/2.8" |
| Active area | 5.57 × 3.13 mm |
| Sensor diagonal | 6.39 mm |
| Pixel size | 2.9 µm |
| シャッター | ローリング |
| Max frame rate | 120 fps |
| インターフェース | MIPI CSI-2 / LVDS / Parallel |
| Color / mono | Color |
| NIR response | Enhanced near-infrared |
Manufacturer datasheet: Sony IMX290 product page
Compatible Commonlands lenses for the IMX290. Field of View calculated with Distortion.
Each field of view below is calculated for the IMX290 active area (5.57 × 3.13 mm) using our MCP server and Field of view calculator. The rectilinear formula FoV = 2 × arctan(dimension ÷ (2 × focal length)) is incorrect for many lenses as it doesn't include distortion. Coverage shows whether the lens image circle covers the 6.39 mm sensor diagonal. Fisheye and f-theta lenses do not follow the rectilinear formula, so their entries link to the product page for the mapped field of view.
Coverage key: covers = lens image circle ≥ sensor diagonal; crops = image circle smaller than the diagonal (expect vignetting at the corners); verify = image circle not published for this lens — ask our engineers to confirm coverage.
How to choose a lens for the IMX290
Start from the field of view your application needs, then read across to the focal length that produces it on the IMX290. Confirm the lens image circle covers the 6.39 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 2.1 MP or higher so it resolves the 2.9 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a MIPI camera module around the IMX290? Commonlands can provide customized MIPI modules with our lenses; MoQs apply. Commonlands provides M12 lenses and C-mount optics and ships from San Diego, with same-day shipping for in-stock lenses ordered by 12 PM PST. We also assemble and align lens-to-sensor modules. Talk to an applications engineer.
