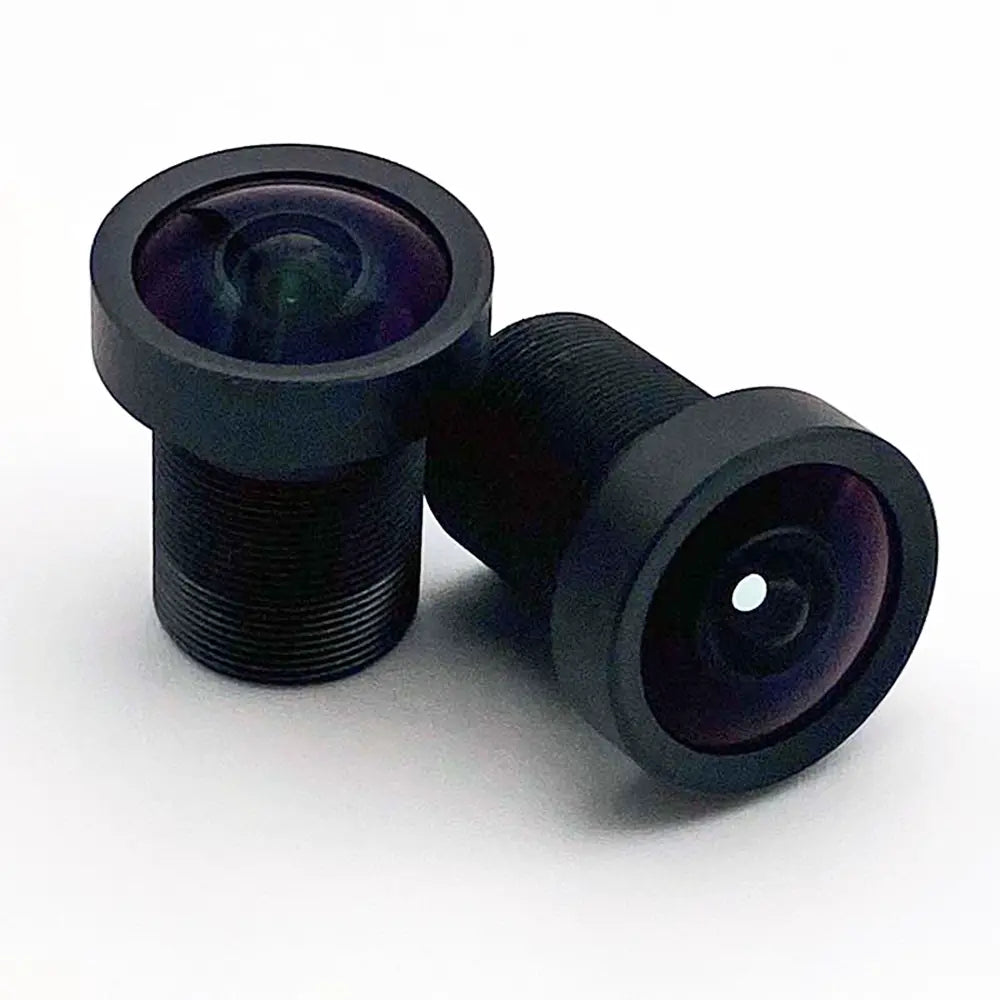

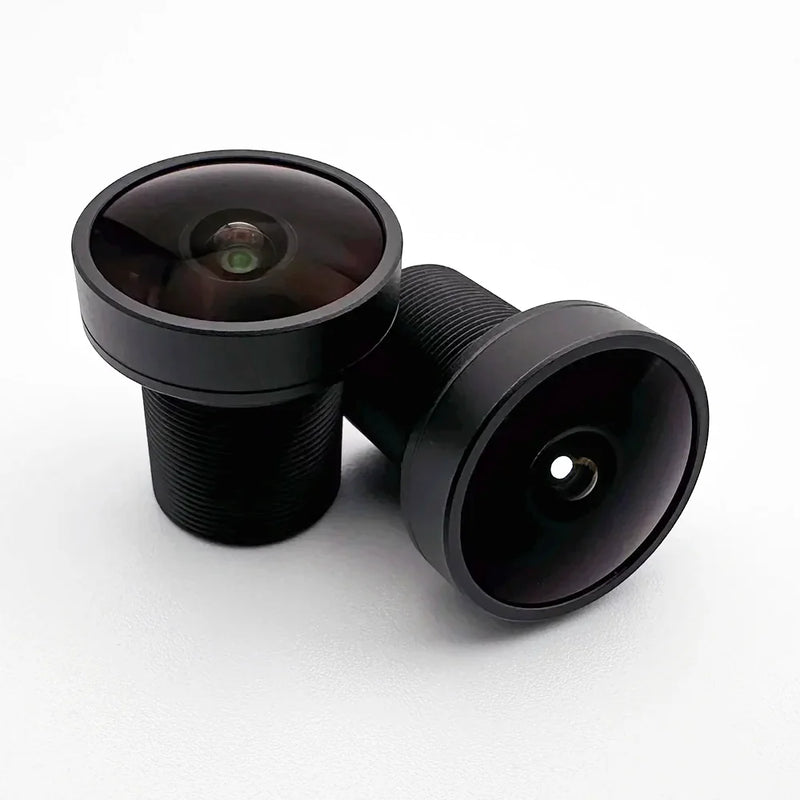

Wide-Angle 3mm M12 Lens for up to 1/2.3" such as IMX477 and IMX577.
広角3.2mm M12レンズ
CIL391は広角3mm M12レンズで、1/2.3インチセンサーに119°の水平視野を提供します。この12MP+レンズはGoProカメラに匹敵する画像を提供する。
In stock — orders before 12 PM PST ship same day
レンズの特徴
10MP-12MP
1.4umピクセルサイズを要求する鮮明な画像
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL391 |
| イーエフエル | 3.25 |
| F# | 2.8 |
| 視野 | 154° @ 7.9mm image circle — Calculate FoV for your sensor |
| イメージサークル | 7.9mm |
| ディストーション | -16% TV |
| 重量 | 5g |
| IRカットフィルター | オプション |
| 建設 | オールガラス |
| チーフ・レイ・アングル | 13.9° |
カメラ・メカニカル互換性表
| カメラ/マウント | 互換性 |
|---|---|
| Commonlands CLA024 | CLA024 |
| イーコンシステムズ Sマウント | 高さ12～15mmのマウント |
| D3エンジニアリング | はい |
| iDS XLS | はい |
| アライドビジョン | はい |
| バスラー・ダート | はい |
| イメージング・ソース M12 | はい |
| Raspberry Pi HQ M12 | はい |
*カメラメーカーが提供する標準M12x0.5レンズマウントを前提とした機械的互換性のみ。光学的な互換性は別途ご確認ください。
Frequently asked questions
What sensors work with the CIL391 GoPro replacement lens?
The CIL391 supports 1/2.3\" sensors including the Sony IMX477 and IMX577, resolving 12MP at 1.55μm pixel pitch. The 7.9mm image circle fully covers 1/2.3\" format.
How wide is the CIL391 field of view?
154° total field of view at the 7.9mm image circle. On 1/2.3\" sensors, this gives you wide-angle coverage comparable to a GoPro camera module.
How much distortion does the CIL391 have?
The CIL391 has -16% TV barrel distortion. This is expected for a 154° wide-angle lens and can be corrected in software using standard lens distortion models.
Is the CIL391 compatible with the Raspberry Pi HQ Camera?
Yes. The CIL391 is mechanically compatible with the Raspberry Pi HQ Camera M12 mount. The Commonlands CLA024 holder is also an option for custom integration.
Does the CIL391 wide-angle M12 lens ship same day?
Yes. Commonlands ships all in-stock M12 lenses same day from San Diego, California for orders placed before 12 PM PST.
What filter options are available for the CIL391?
Three variants are available: CIL391-F2.2-M12ABR650 (blue-glass reflective 650nm IRC), CIL391-F2.8-M12A660 (standard 660nm IRC), and CIL391-F2.8-M12ANIR (no filter for NIR applications).
