IMX541などの最大1.2インチセンサー用16mm Cマウントレンズ

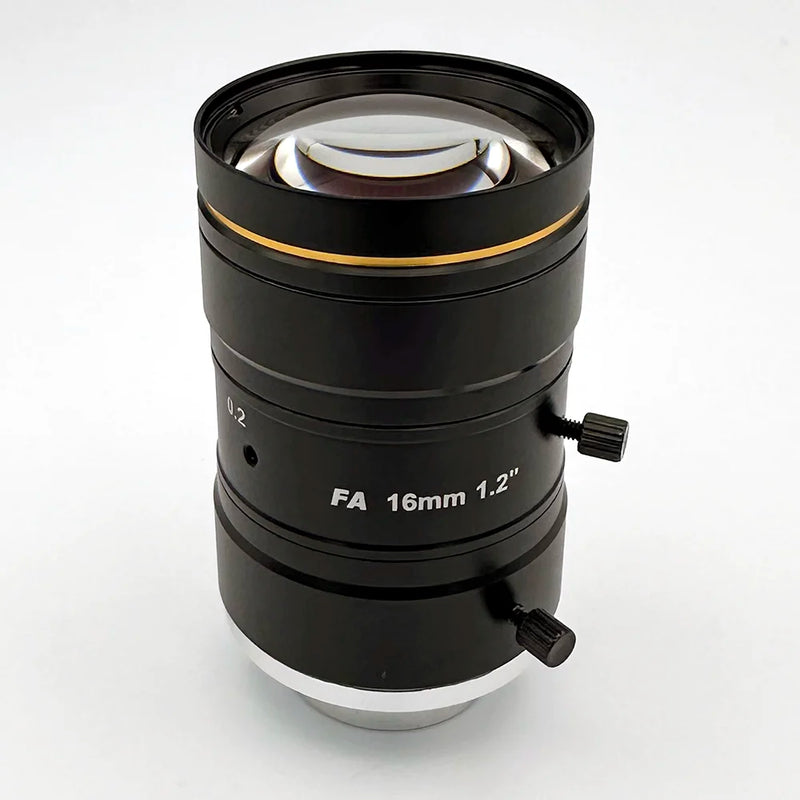

The CIL553 is a 16mm C-mount lens designed for 1.2" sensors resolving 25MP at 2.74μm pixel pitch. That means the IMX540 and IMX541 — the sensors powering most high-resolution area scan cameras from Basler, FLIR, and Lucid Vision. The 19.4mm image circle covers the full 1.2" format with clean edge performance, and the all-glass construction holds up under factory floor vibration and temperature cycling.

Distortion is -0.09% from rectilinear. Functionally zero. If you are doing dimensional measurement, gauging, or any metrology task where a tenth of a percent matters, this lens removes distortion correction from your processing pipeline entirely. The 62.5° field of view gives you a comfortable working area for PCB inspection, semiconductor packaging, and parts measurement. Calculate exact coverage for your sensor at https://commonlands.com/pages/camera-field-of-view-calculator.

The manually adjustable iris runs from F/2.8 to F/16, giving you fine control over depth of field. At F/2.8 you get maximum light throughput for high-speed line scan and low-light environments. Stop down to F/8 or F/16 when you need extended depth of field for 3D inspection or thick parts. Minimum object distance is 125mm. All-glass construction, 128g total weight. No front filter threads on this model.

Ships as CIL553-F2.8-CMANIR without filter in C-Mount A configuration. The lens threads directly into any standard C-mount camera — no adapter needed. Pair it with other Commonlands C-mount lenses like the CIL544 (25mm) or CIL542 (12mm) to cover multiple focal lengths on the same camera platform.

Ships same day from San Diego for orders placed before 12 PM PST. Every CIL553 is 100% MTF tested at our ISO 9001:2015 facility. Contact engineering@commonlands.com for volume pricing or to request .STP files and mechanical drawings. Use the depth of field calculator at https://commonlands.com/pages/camera-depth-of-field-calculator to optimize aperture for your working distance.
