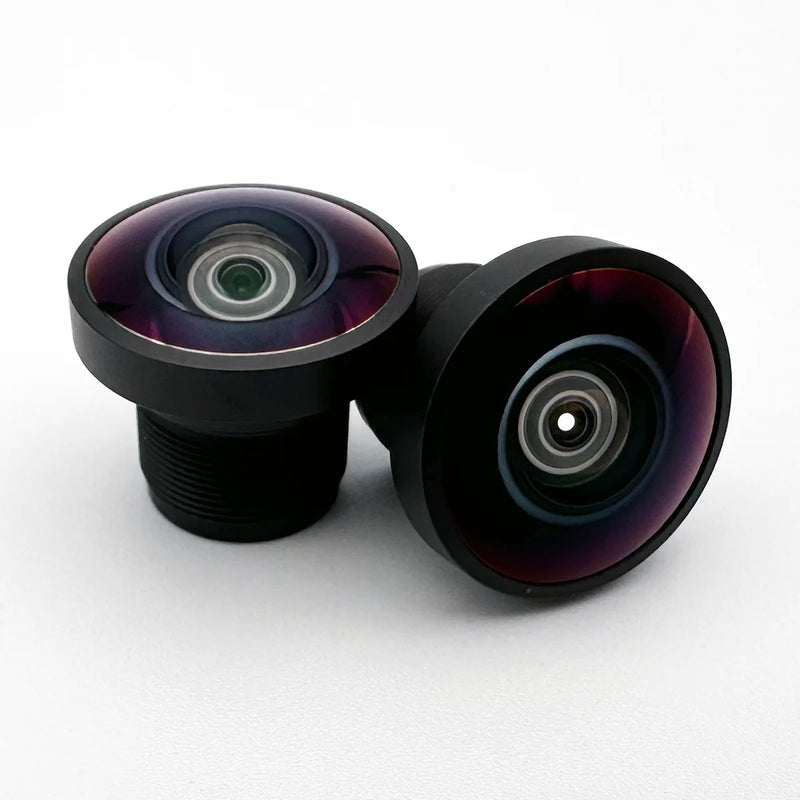

192° Wide-Angle Fisheye M12 Lens for 5MP to 8MP Sensors

The CIL237 is a cost-competitive 1.75mm fisheye M12 lens built for wide coverage on larger image circles. The product page leads with 200°@5.5mm, while the specification table gives 192° at 5.4mm image circle with a full 5.5mm image circle. In practice, this is the lens you pick when you want aggressive coverage on sensors from 1/3" to 1/1.7" without jumping to a much larger assembly.

Resolution is rated at 5MP with 2.2μm pixels, and the lens is commonly positioned for sensors up to 5MP 1/2.5" and 8MP 1/1.8". EFL is 1.75mm, aperture is F/2.2, and TTL is 19.0mm. That short TTL matters in embedded cameras where housing depth is still a hard constraint.

The optical design uses a hybrid Glass+Plastic construction with metal mechanicals. That is the right trade for this class of lens: good performance, lower cost, and manageable weight at 5g. The M12A variant includes BBAR on lens 1 surface 1 with a metal cap and barrel. Available with IR cut and without filter for NIR use.

Distortion is the interesting part. Commonlands calls out special F-Θ behavior: less than 2% F-Θ distortion through a 5.0mm image circle, then -8% F-Θ at 5.5mm. If angular consistency matters more than pretty rectilinear edges, this is a useful profile. The recommended holder is CLA020. e-con Systems boards with 7-10mm mount height work, and iDS uEye LE Rev1.1 is compatible.

Ships same day from San Diego before 12 PM PST. Mechanical drawings and STP files are available on request. For production quantities, contact us for volume pricing.
