Sony IMX335 · 5.0MP 1/2.8" rolling-shutter CMOS image sensor
IMX335 Sensor Specifications & Compatible M12 and C-Mount Lenses

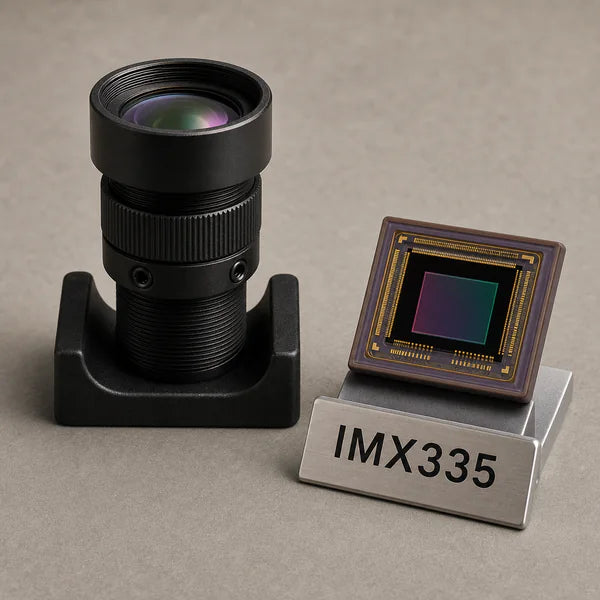

IMX335 is a Sony 1/2.8-inch rolling-shutter CMOS image sensor from the STARVIS family, designed for low-light and NIR applications. It outputs 2592x1944 (5.0 MP) at 60 fps over MIPI CSI-2, with 2.0 um pixels across a 6.48 mm diagonal. Commonlands pairs it with M12 Lenses that cover the 6.48 mm image circle and publishes the calculated field of view for every option.
IMX335 specifications
| Part number | IMX335 |
|---|---|
| 製造元 | ソニー |
| Family | STARVIS |
| 決議 | 2592×1944 (5.0 MP) |
| 光学フォーマット | 1/2.8インチ |
| Active area | 5.18 × 3.89 mm |
| Sensor diagonal | 6.48 mm |
| ピクセルサイズ | 2.0 µm |
| シャッター | ローリング |
| 最大フレームレート | 60 fps |
| インターフェース | MIPI CSI-2 |
| Color / mono | Color |
| 近赤外応答 | Enhanced near-infrared |
Manufacturer datasheet: Sony IMX335 product page
Lens selection for the IMX335 with calculated field of view
Each field of view below is calculated for the IMX335 active area (5.18 × 3.89 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists focal length, mount, aperture (F#), and coverage. Follow the product links for distortion, ingress protection, dimensions, and resolution specifications. Coverage compares the lens image circle with the 6.48 mm sensor diagonal. Entries marked Circular image do not cover the full diagonal; part of the sensor lies outside the image circle. Run working-distance and object-size numbers through the field of view calculator.
Engineering picks for the IMX335
- Best ~30° HFoV: 9.1mm M12 Lens (CIL092) (9.1 mm, f/2.6). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX335: 32° H × 24° V (40° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX335: 61° H × 48° V (73° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Fisheye 2.5mm M12 Lens (CIL926) (2.5 mm, f/2.5). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the IMX335: 119° H × 89° V (149° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the IMX335: 36° H × 27° V (44° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Compact low-cost pick: Telephoto 16mm M12 Lens (CIL160) (16 mm, f/1.9). Why: the lowest-priced covering M12 barrel ($15). Field of view on the IMX335: 18° H × 14° V (23° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Find a lens for the IMX335 in the M12 Lens collection or the C-Mount Lens collection. The covering options below run from 0.8 mm to 100 mm focal length and span 3° to 195° horizontal field of view on the IMX335 active area.
Covers in the table means the lens image circle is at least as large as the 6.48 mm sensor diagonal. Confirm corner illumination and MTF at your aperture, wavelength, and working distance. A complete circular fisheye image fits inside the sensor only when its diameter is no larger than the sensor's short side. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the IMX335
Start from the field of view and working distance your application needs. Confirm that the lens image circle covers the active sensor diagonal and that the mount provides the required focus travel and rear clearance. A lens megapixel rating alone does not establish resolution on this sensor. Compare measured MTF at the spatial frequencies your task needs, at the intended aperture, wavelength, distance, and field position, accounting for the 2.0 µm pixel pitch. Estimate framing with the Commonlands field of view calculator.
Sourcing a camera module around the IMX335? Commonlands manufactures M12 lenses and C-mount lenses and ships from San Diego, with same-day shipping on in-stock lenses ordered before 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the IMX335 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned IMX335 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
IMX335 lens and camera module FAQ
What lens fits the IMX335 sensor?
A lens match requires sufficient image-circle coverage, suitable MTF, and mechanical clearance. Use the coverage column and calculated field of view to shortlist lenses, then verify the operating conditions on each product page.
What is the IMX335 sensor size?
The IMX335 is a 1/2.8" format sensor with a 5.18 × 3.89 mm active area and a 6.48 mm diagonal, built on 2.0 µm pixels at 2592x1944 resolution.
Does Commonlands build a custom MIPI camera module for the IMX335?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the IMX335 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your IMX335 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
