OmniVision image sensor · OmniPixel3-GS
OV2311 sensor specifications and
compatible M12 lenses & C-mount lenses

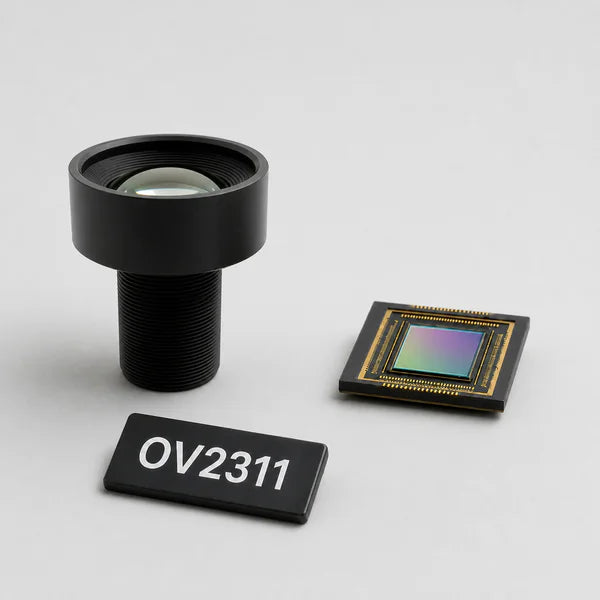

OV2311 is an OmniVision 1/2.9" global-shutter CMOS image sensor in the OmniPixel3-GS line, with NIR sensitivity that suits driver monitoring and eye tracking. It reads a 1600x1300 monochrome array on 3 um pixels at 60 fps over MIPI CSI-2 or DVP. Commonlands matches M12 Lenses to its 6.18mm image circle and reports the calculated horizontal, vertical, and diagonal field of view.
OV2311 specifications
| Part number | OV2311 |
|---|---|
| Manufacturer | OmniVision |
| Family | OmniPixel3-GS |
| 決議 | 1600x1300 (2.1 MP) |
| Optical format | 1/2.9" |
| Active area | 4.8 × 3.9 mm |
| Sensor diagonal | 6.18 mm |
| Pixel size | 3.0 µm |
| シャッター | グローバル |
| Max frame rate | 60 fps |
| インターフェース | MIPI CSI-2 / DVP |
| Color / mono | Mono |
| NIR response | Enhanced near-infrared |
Manufacturer datasheet: OmniVision OV2311 product page
Compatible Commonlands lenses for the OV2311. Field of View calculated with Distortion.
Each field of view below is calculated for the OV2311 active area (4.8 × 3.9 mm) using our MCP server and Field of view calculator. The rectilinear formula FoV = 2 × arctan(dimension ÷ (2 × focal length)) is incorrect for many lenses as it doesn't include distortion. Coverage shows whether the lens image circle covers the 6.18 mm sensor diagonal. Fisheye and f-theta lenses do not follow the rectilinear formula, so their entries link to the product page for the mapped field of view.
Coverage key: covers = lens image circle ≥ sensor diagonal; crops = image circle smaller than the diagonal (expect vignetting at the corners); verify = image circle not published for this lens — ask our engineers to confirm coverage.
How to choose a lens for the OV2311
Start from the field of view your application needs, then read across to the focal length that produces it on the OV2311. Confirm the lens image circle covers the 6.18 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 2.1 MP or higher so it resolves the 3.0 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a MIPI camera module around the OV2311? Commonlands can provide customized MIPI modules with our lenses; MoQs apply. Commonlands provides M12 lenses and C-mount optics and ships from San Diego, with same-day shipping for in-stock lenses ordered by 12 PM PST. We also assemble and align lens-to-sensor modules. Talk to an applications engineer.
