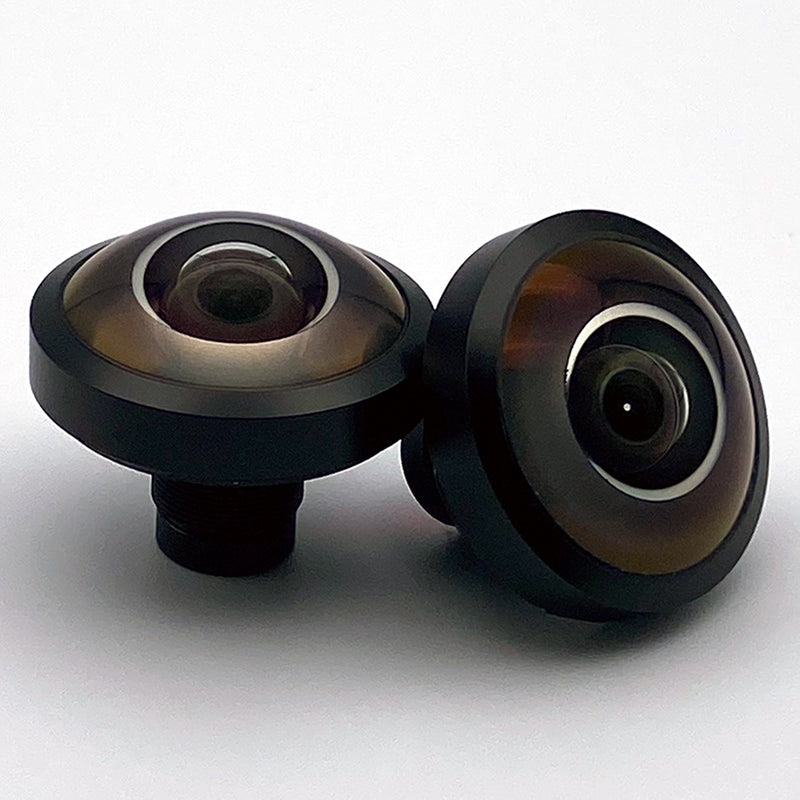

230° M12 Fisheye Lens for up to 1/1.8" sensors such as IMX677 and IMX147

230°@4.5mm フィッシュアイ M12 レンズ

CIL213は、1.2mm、F/2.3のウルトラフィッシュアイレンズで、4.5mmのイメージサークルにおいて230°の視野角(VFoV)を実現します。このレンズは、ハイエンドの小型360°撮影用途に最適です。CIL213はIP65規格の防塵・防水構造を採用しています。
$129.00

CIL213-F2.3-M12A660(F/2.3 / M12A / 660nm IRCフィルター付き)は現在在庫切れです。早急に再入荷できるよう努めておりますので、在庫状況についてはお問い合わせください。

30pcs CIL213-F2.3-M12ANIR (F/2.3 / M12A / Without Filter) in stock in the US

In stock. Orders before 12 PM PT ship same day

レンズの特徴

12MP以上の解像度

ソニー IMX677 などの 1/1.8 インチ 12MP センサーに対応した MTF。

IP65 防滴仕様

IP65規格に準拠した密閉構造により、防塵・防滴性能を備え、過酷な屋外環境への直接的な曝露にも耐えます。

光学・機械的仕様表

レンズのパラメータ 公演詳細
品番CIL213
EFL1.2
F# 2.3
決議12MP, 1.55um
視野230°、イメージサークル4.5mm。お使いのセンサーに合わせた視野角(FoV)を計算してください。
イメージサークル4.5mm
歪み-9% F-Θ
重量21g
IRカットオフフィルター付属品付き品番:CIL213-F2.3-M12A660
付属品なし品番:CIL213-F2.3-M12ANIR
建設10 ガラス、アルミニウム
レイ・アングル署長4° @ 4.5mm image circle

機械的なバリエーション

バリアント 説明
M12A IP65、レンズ1の表面1にBBAR、AL6061製キャップ+バレル

機械レイアウト

カメラの機械的互換性一覧表*

カメラ/マウント 互換性
コモンランズ CLA024 CLA024
e-con Systems S-マウント 高さ8mm~13mmのホルダー
Allied Vision Alvium Sマウント はい
FLIR Firefly S Board はい
iDS uEye LE Rev1.1:はい、Rev1.2:いいえ
The Imaging Source M12 はい、ガラスを取り外した後です
Basler Dart Sマウント はい

*カメラメーカーが提供する標準のM12x0.5レンズマウントを前提とした、機械的な互換性のみです。光学的な互換性については別途ご確認ください。

Same Day Ship by 12 PM PT
米国拠点 光学エンジニアリング・サポート
25,000以上 カリフォルニア州の在庫
100% MTF測定済み

よくある質問

CIL213 230度魚眼レンズは、どのようなセンサーに対応していますか?

The CIL213 forms a circular fisheye image on 1/1.8 inch sensors and has a nominal lens rating of 12MP at 1.55μm pixel pitch. Sony IMX677 and IMX147 are verified matches. Its 4.5mm image circle does not imply full rectangular coverage of 1/1.8 inch, 1/2.3 inch, or 1/3 inch sensors; compare the active dimensions with the intended circular image or crop.

CIL213の視野角はどれくらいですか?

CIL213は対角視野角230°を実現します。これは半球状のカバー範囲を上回ります。Commonlandsの視野角計算ツールを使用して、お使いのセンサーにおける正確な角度を計算してください。

CIL213は屋外で使用しても耐候性がありますか?

Yes, the CIL213 is IP65-rated against dust and water jets. It works for outdoor surveillance, drone, and exterior monitoring without an extra housing.

CIL213にはどのようなレンズホルダーが必要ですか?

The Commonlands CLA024 lens holder is one compatible mounting option. e-con Systems standard S-mount boards need an 8-13mm holder height, while Allied Vision Alvium and FLIR Firefly S mount directly.

CIL213を使って、360度カメラのステッチ処理を行うことはできますか?

はい、2つのCIL213レンズを背中合わせに配置すると、視差スティッチングの余裕を含めて230°の視野が重なり合います。1.55μmの画素サイズで12MPの解像度があれば、実用的な360°の出力を得るのに十分な画素数が確保できます。

CIL213 フィッシュアイ M12 レンズは当日発送されますか?

Yes, orders placed before 12 PM PT ship same day from the San Diego warehouse. Every CIL213 is individually MTF tested before leaving the ISO 9001:2015 facility.

The CIL213 is a 1.2mm ultra-fisheye M12 lens with a full 230° field of view on a 4.5mm image circle. It uses ten all-glass elements in an aluminum barrel, a fixed F/2.3 aperture, and a 21g package. That is heavier than most M12 fisheyes, but the extra glass is what it takes to get 230° coverage while still resolving 12MP at 1.55μm pixel pitch on 1/1.8" sensors such as the Sony IMX677 and IMX147.

The lens uses -9% F-Θ distortion, measured relative to the equidistant reference. That matters because the 230° field reaches behind the lens plane, so two cameras mounted back-to-back can overlap enough for 360° stitching with some margin. The compact 4.5mm image circle also helps keep the overall package smaller than you would expect for this field angle.

CIL213は、箱から出したままの状態でIP65規格に準拠しています。粉塵の侵入や水流に対して密閉されているため、屋外での監視や外部モニタリングにおいて、レンズ周囲に追加の耐候対策を行う必要はありません。また、アルミニウム製の鏡筒とBBARコーティングが施された第一面は、安価なプラスチック製のものよりも屋外での耐久性に優れています。

The lens mounts with the Commonlands CLA024 lens holder. It is compatible with e-con Systems boards using an 8-13mm holder, Allied Vision Alvium, FLIR Firefly S, and Basler Dart. iDS uEye LE Rev1.1 works, but Rev1.2 does not. The Imaging Source requires removing the glass window first.

Commonlands ships this lens same day from San Diego before 12 PM PT. Every CIL213 is 100% MTF tested. You can calculate your field of view.
