Sony IMX566 · 8.1MP 2/3" global-shutter CMOS image sensor
IMX566 Sensor Specifications & Compatible M12 and C-Mount Lenses

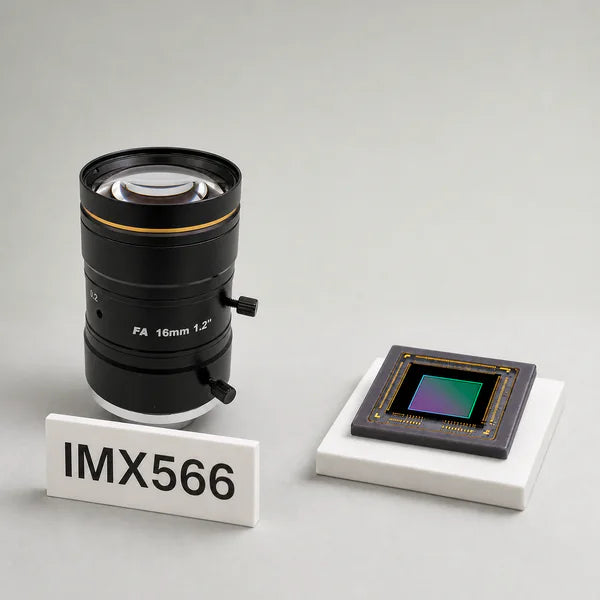

IMX566 is a Sony 2/3" global-shutter CMOS image sensor in the Pregius S family for precise machine vision. It captures 8.1 MP at a near-square 2856x2848 on 2.74 um pixels across an 11.05 mm diagonal at 62.6 fps over MIPI CSI-2. Its 11.05 mm image circle sits beyond M12 Lens coverage, so the C-Mount Lenses in the table below carry it, each with its calculated horizontal, vertical, and diagonal field of view.
IMX566 specifications
| Part number | IMX566 |
|---|---|
| 製造元 | ソニー |
| Family | Pregius S |
| 決議 | 2856×2848 (8.1 MP) |
| 光学フォーマット | 2/3インチ |
| Active area | 7.83 × 7.8 mm |
| Sensor diagonal | 11.05 mm |
| ピクセルサイズ | 2.74 µm |
| シャッター | グローバル |
| 最大フレームレート | 62.6 fps |
| インターフェース | MIPI CSI-2 |
| Color / mono | Color / Mono |
Manufacturer datasheet: Sony IMX566 product page
Compatible Commonlands Lenses for the IMX566 with Calculated Field of View
Each field of view below is calculated for the IMX566 active area (7.83 × 7.8 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists the lens aperture (F#), distortion, ingress protection, total track length (TTL), and rated resolution, so you can shortlist on optics and mechanics in one pass. Coverage shows whether the lens image circle covers the 11.05 mm sensor diagonal. Only lenses that cover the full diagonal are listed. Run exact working-distance and object-size numbers through the field of view calculator.
Engineering picks for the IMX566
- Best ~30° HFoV: 16mm C-Mount Lens (CIL553) (16 mm, f/2.8). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX566: 27° H × 27° V (38° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX566: 52° H × 52° V (69° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Widest covering option: 4.9mm C-Mount Lens (CIL505) (4.9 mm, f/2.2). Why: the widest horizontal field of view that still covers the full sensor. Field of view on the IMX566: 93° H × 93° V (135° diagonal). The image circle covers the full sensor (verified 2026-07-02).
This larger format pairs with the C-Mount Lens collection. Covering lenses below run from 1.3 mm to 75 mm focal length and span 6° to 184° horizontal field of view on the IMX566 active area.
| Commonlands Lens | Focal Length | マウント | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Fisheye 1.3mm M12 Lens (CIL293) | 1.3 mm | M12 | f/2.2 | 184° | 184° | 184° | Circular image |
| 4mm C-Mount Lens (CIL529) | 4 mm | Cマウント | f/2.8 | 92° | 92° | 114° | Covers |
| 4.9mm C-Mount Lens (CIL505) | 4.9 mm | Cマウント | f/2.2 | 93° | 93° | 135° | Covers |
| 8mm C-Mount Lens (CIL521) | 8 mm | Cマウント | f/1.5 | 52° | 52° | 69° | Covers |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | Cマウント | f/2.4 | 50° | 50° | 68° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | Cマウント | f/2.8 | 36° | 36° | 49° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | Cマウント | f/2.8 | 27° | 27° | 38° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | Cマウント | f/2.6 | 18° | 18° | 25° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | Cマウント | f/2.6 | 13° | 13° | 18° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | Cマウント | f/2.8 | 9° | 9° | 13° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | Cマウント | f/3 | 6° | 6° | 8° | Covers |
Covers in the table means the lens image circle is at least as large as the 11.05 mm sensor diagonal, so the corners are not cropped. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the IMX566
Start from the field of view your application needs, then read across to the focal length that produces it on the IMX566. Confirm the lens image circle covers the 11.05 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 8.1 MP or higher so it resolves the 2.74 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a camera module around the IMX566? Commonlands manufactures the M12 Lenses and C-Mount Lenses above and ships from San Diego, with same-day shipping on in-stock lenses ordered by 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the IMX566 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned IMX566 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
IMX566 lens and camera module FAQ
What lens fits the IMX566 sensor?
Commonlands M12 Lenses and C-Mount Lenses whose image circle covers the IMX566’s 11.05 mm diagonal fit the sensor. The table above lists each compatible lens with its calculated horizontal, vertical, and diagonal field of view on the IMX566 active area (7.83 × 7.8 mm).
What is the IMX566 sensor size?
The IMX566 is a 2/3" format sensor with a 7.83 × 7.8 mm active area and a 11.05 mm diagonal, built on 2.74 µm pixels at 2856x2848 resolution.
Does Commonlands build a custom MIPI camera module for the IMX566?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the IMX566 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your IMX566 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
