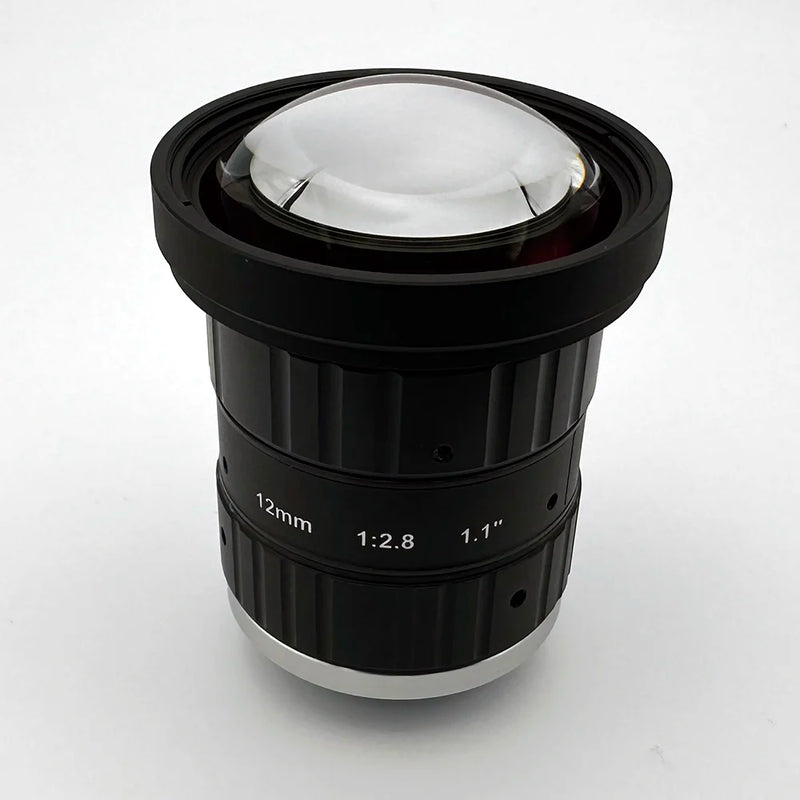

IMX304やIMX253などの最大1.1インチセンサー用12mm Cマウントレンズ
12mm Cマウントレンズ 1.1インチ 12MP
In stock — orders before 12 PM PST ship same day
レンズの特徴
低歪み
-1.8% TV Distortion makes this lens ideal for factory automation.
高解像度
Suitable for 3.45um pixel pitch
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL512 |
| イーエフエル | 12.0 |
| F# | 2.8 |
| 決議 | 12MP (3.45um) |
| 視野 | 75° @ 17.6mm image circle — Calculate FoV for your sensor |
| イメージサークル | 17.6mm |
| ディストーション | -0.018 |
| 重量 | 186g |
| 建設 | オールガラス |
Frequently asked questions
What sensors does the CIL512 12mm C-mount lens support?
Supports sensors up to 1.1 inch format with 3.45 micron pixel pitch or larger, including the Sony IMX253 and IMX304. The 17.6mm image circle covers the full 1.1 inch sensor diagonal at 12MP.
What is the minimum focus distance of the CIL512?
The CIL512 focuses as close as 80mm (0.08m). That is closer than most 12mm C-mount lenses in this class, which helps in tight inspection stations. Plan the setup at https://commonlands.com/pages/camera-depth-of-field-calculator.
How does the CIL512 compare to the CIL513 16mm lens?
The CIL512 (12mm) gives a 75 degree field of view on 1.1 inch sensors with -1.8% distortion. The CIL513 (16mm) gives a 60 degree field of view with less than -1% distortion. Pick the CIL512 for wider coverage, or the CIL513 when geometric accuracy comes first.
Does the CIL512 have filter threads?
No. The CIL512 does not have filter threads. If you need inline filtering, look at the CIL513 (16mm) or CIL514 (25mm), which accept M35.5x0.5 threaded filters.
Does the CIL512 12mm C-mount lens ship same day?
Yes. All in-stock CIL512 units ship same day from San Diego, California for orders placed before 12 PM PST. STP files and mechanical drawings are available through the product page.
What is the distortion of the CIL512 and is it suitable for measurement?
The CIL512 has -1.8% TV distortion. That is usually fine for factory automation, barcode reading, and visual inspection without software correction. For dimensional measurement where sub-pixel accuracy matters, calibrate the system or move up to the CIL513 at -1% distortion.
