Sony IMX304 · 12.4MP 1.1" global-shutter CMOS image sensor
IMX304 Sensor Specifications & Compatible M12 and C-Mount Lenses

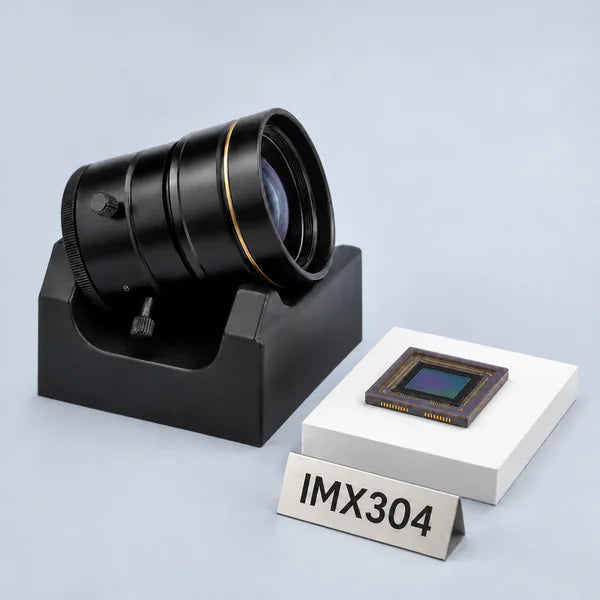

IMX304 is a Sony 1.1-inch global-shutter CMOS image sensor from the Pregius family, built for high-resolution machine vision. It captures 4112x3008 (12.4 MP) at 23.4 fps over an LVDS interface, with 3.45 um pixels and a 17.58 mm diagonal. The 17.58 mm image circle is larger than any M12 Lens covers, so Commonlands matches C-Mount Lenses to it and reports the calculated field of view for each option below.
IMX304 specifications
| Part number | IMX304 |
|---|---|
| 製造元 | ソニー |
| Family | Pregius |
| 決議 | 4112×3008 (12.4 MP) |
| 光学フォーマット | 1.1" |
| Active area | 14.19 × 10.38 mm |
| Sensor diagonal | 17.58 mm |
| ピクセルサイズ | 3.45 µm |
| シャッター | グローバル |
| 最大フレームレート | 23.4 fps |
| インターフェース | LVDS |
| Color / mono | Color / Mono |
Manufacturer datasheet: Sony IMX304 product page
Compatible Commonlands Lenses for the IMX304 with Calculated Field of View
Each field of view below is calculated for the IMX304 active area (14.19 × 10.38 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists the lens aperture (F#), distortion, ingress protection, total track length (TTL), and rated resolution, so you can shortlist on optics and mechanics in one pass. Coverage shows whether the lens image circle covers the 17.58 mm sensor diagonal. Only lenses that cover the full diagonal are listed. Run exact working-distance and object-size numbers through the field of view calculator.
Engineering picks for the IMX304
- Best ~30° HFoV: 25mm C-Mount Lens (CIL554) (25 mm, f/2.6). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX304: 32° H × 23° V (39° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: 12mm C-Mount Lens (CIL552) (12 mm, f/2.8). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX304: 61° H × 47° V (72° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8.5mm C-Mount Lens (CIL508) (8.5 mm, f/2.4). Why: the fastest covering aperture (f/2.4), which collects the most light per pixel. Field of view on the IMX304: 83° H × 65° V (98° diagonal). The image circle covers the full sensor (verified 2026-07-02).
This larger format pairs with the C-Mount Lens collection. Covering lenses below run from 1.3 mm to 75 mm focal length and span 11° to 184° horizontal field of view on the IMX304 active area.
| Commonlands Lens | Focal Length | マウント | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Fisheye 1.3mm M12 Lens (CIL293) | 1.3 mm | M12 | f/2.2 | 184° | 184° | 184° | Circular image |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | Cマウント | f/2.4 | 83° | 65° | 98° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | Cマウント | f/2.8 | 61° | 47° | 72° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | Cマウント | f/2.8 | 48° | 36° | 57° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | Cマウント | f/2.6 | 32° | 23° | 39° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | Cマウント | f/2.6 | 23° | 17° | 28° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | Cマウント | f/2.8 | 16° | 12° | 20° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | Cマウント | f/3 | 11° | 8° | 13° | Covers |
Covers in the table means the lens image circle is at least as large as the 17.58 mm sensor diagonal, so the corners are not cropped. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the IMX304
Start from the field of view your application needs, then read across to the focal length that produces it on the IMX304. Confirm the lens image circle covers the 17.58 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 12.4 MP or higher so it resolves the 3.45 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a camera module around the IMX304? Commonlands manufactures the M12 Lenses and C-Mount Lenses above and ships from San Diego, with same-day shipping on in-stock lenses ordered by 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the IMX304 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned IMX304 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
IMX304 lens and camera module FAQ
What lens fits the IMX304 sensor?
Commonlands M12 Lenses and C-Mount Lenses whose image circle covers the IMX304’s 17.58 mm diagonal fit the sensor. The table above lists each compatible lens with its calculated horizontal, vertical, and diagonal field of view on the IMX304 active area (14.19 × 10.38 mm).
What is the IMX304 sensor size?
The IMX304 is a 1.1" format sensor with a 14.19 × 10.38 mm active area and a 17.58 mm diagonal, built on 3.45 µm pixels at 4112x3008 resolution.
Does Commonlands build a custom MIPI camera module for the IMX304?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the IMX304 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your IMX304 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
