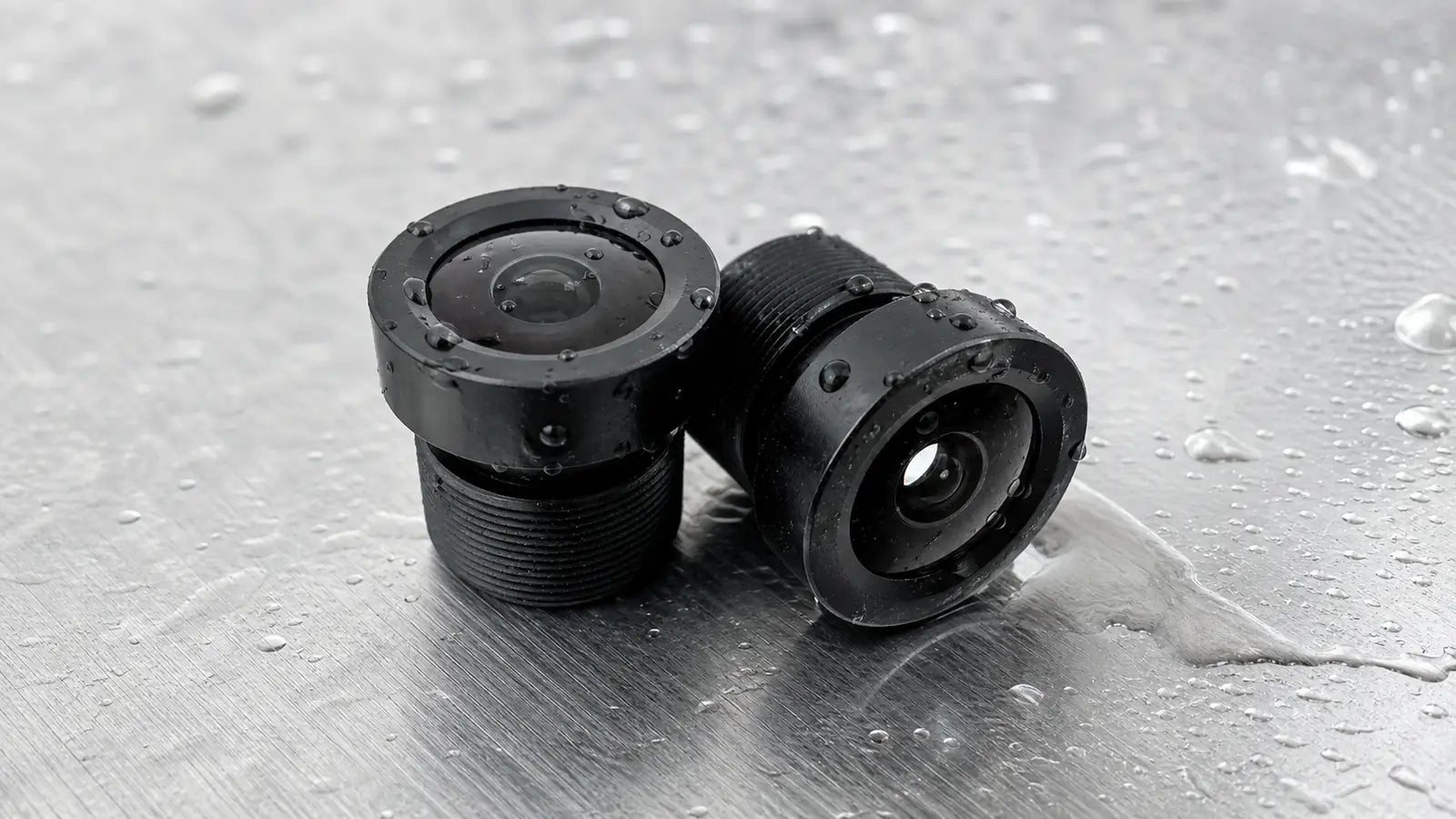

耐環境型マシンビジョンレンズ：熱安定性、撥水コーティング、および耐振動性
Thermal stability, hydrophobic coatings, and vibration resistance define what makes a machine vision lens ruggedized, not an IP rating alone. This guide covers athermalization, all-glass versus hybrid construction, and how to validate a lens for outdoor, automotive, and industrial deployments.
堅牢なマシンビジョン用レンズは、IP等級だけで定義されるものではありません。それは、防塵・防水性能、温度変動下でも焦点を維持する構造、撥水性と耐汚染性を備えた前玉コーティング、そして実際の振動、衝撃、熱サイクル試験を経て実証された性能を兼ね備えています。この堅牢化仕様は、その目的のために製造・試験された一部のM12レンズおよび一部のCマウントレンズに適用されるものであり、いずれのマウントファミリーのすべてのレンズに適用されるわけではありません。
マシンビジョン用レンズの「堅牢性」とは、具体的にどのような点にあるのでしょうか？
| プロパティ | どのようなものから保護するのか | 解決できないこと |
|---|---|---|
| 侵入防止（IP等級） | ねじ部や接合部の隙間からバレル内に侵入するほこりや水 | 熱によるピントずれ、振動によるピントずれ、前表面の水膜 |
| 全面ガラス製、アルミニウム製バレル構造 | Contributes to lower, more predictable thermal drift when the full design balances CTE and dn/dT, not a guarantee on its own | イングレスの問題（密閉されていないバレル内のガラスレンズから湿気が侵入してしまう） |
| 疎水性フロントコーティング | 前玉に水膜や雨滴が散らばっている；表面の汚れが蓄積している | 内部への湿気の侵入、化学的腐食、物理的衝撃 |
| 環境適応性試験 | Confirms resolution and focus position after real stress exposure, surfacing seal or adhesive failure modes before deployment | 継続的な現場での維持管理およびモニタリング |
Ruggedization is a select-product property, not a mount-family property. Most products in the Commonlands M12 and C-mount collections are specified for stable indoor conditions and standard handling, so treat any description that calls a lens rugged, without the specifics its environment demands, as unverified until confirmed with the supplier.
温度はマシンビジョン用レンズの焦点にどのような影響を与えるのでしょうか？

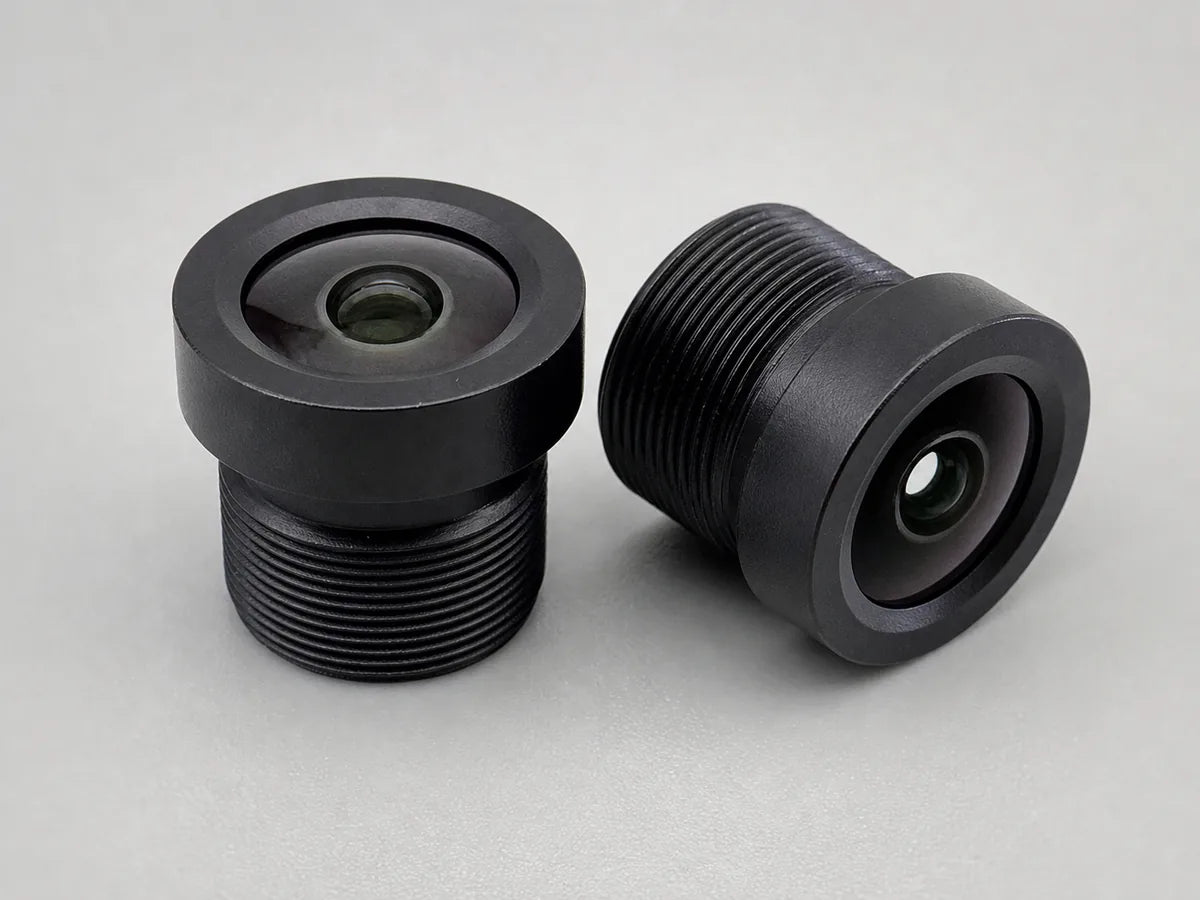

Temperature change moves a lens's focal plane through three simultaneous first-order mechanisms, together called thermal defocus. The barrel and internal spacers expand or contract by their coefficient of thermal expansion (CTE). The glass refractive index shifts with temperature, a property called dn/dT. The glass elements themselves change radii and thickness, which alters their optical power.
An aluminum barrel runs roughly 23 ppm/°C against 7–9 ppm/°C for optical glass, so it expands about three times faster than the glass it holds. Axially, that mismatch changes element spacing and the flange-to-sensor distance, which moves the rear focal point. Whether it dominates thermal defocus or is partly cancelled by dn/dT depends on the design. The same mismatch also loads mounts and bond lines radially, adding asymmetric aberration and, over many cycles, bond fatigue.
The sensor does not hold still either. Sensor die, PCB, standoffs, mount, and housing all expand on their own coefficients, so what defocuses the system is the relative motion between the lens focal plane and the sensor surface, combined with the index change inside the glass. Model the optics and the mechanics as one stack rather than treating the sensor as a fixed reference.
Polycarbonate's dn/dT is much larger and opposite in sign. A cost-driven hybrid not engineered for cancellation drifts more, and less predictably, than an all-glass design where every element expands at a similar, characterizable rate.
Confirm the datasheet operating temperature range rather than assuming from construction type. The magnitude of focus shift scales with the temperature swing from the calibration point. Its direction is design-dependent, set by a given lens's materials and element positions, not a universal rule.
Compare expected thermal focus shift to your system's depth of focus, the image-side focus tolerance. The Commonlands depth-of-field calculator handles the separate object-side depth of field.
Thermal cycling also pumps moisture: an unsealed lens draws in humid air as it cools, and condensation forms haze that no refocusing recovers, which IP sealing sharply reduces. Specify for the real surface temperature, including solar load on a dark housing (which can add 20–30°C in direct sun) and sensor self-heating, then request thermal focus shift data in microns per 10°C and compare it against your depth of focus.
非熱レンズとは何ですか？
An athermal lens is an optical assembly designed so the focal-plane position stays close to its set point across a wide temperature range. Athermalization means thermal drift has been intentionally reduced, not eliminated, to a level that keeps the image within the system's acceptable sharpness window across the rated range.
It is a design property, not a separate product category. A well-athermalized Commonlands M12 lens for outdoor use holds closer to its focus set point across temperature because its materials and layout were chosen so thermal contributions largely cancel. All-glass construction lowers drift but does not by itself guarantee it, which requires the CTE and dn/dT contributions to be deliberately balanced.
Passive athermalization uses material selection and element positioning so mechanical and optical thermal effects partially cancel: barrel materials chosen for CTE compatibility (stainless steel around 17 ppm/°C, titanium around 8.6 ppm/°C, or Invar around 1.2 ppm/°C for the most demanding cases) and spacer geometry chosen deliberately. It needs no motor or power. Focus is fixed at installation and holds passively.
疎水性レンズコーティングとは何ですか？

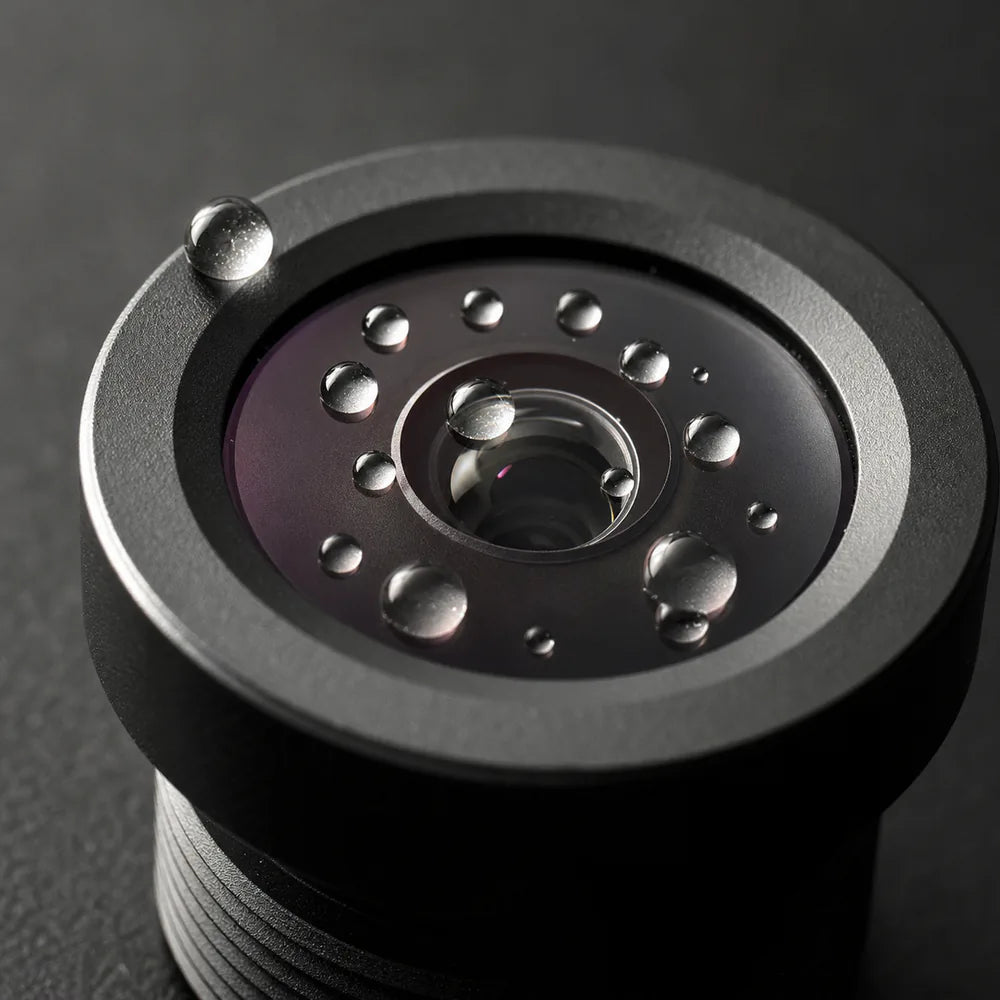

A hydrophobic lens coating is a water-repellent surface treatment, typically a thin fluoropolymer or modified-silica layer, applied to the front outer surface of the first optical element. It lowers the surface energy of the glass so water beads and rolls off rather than spreading into a continuous film. A water film across the front element scatters and refracts incoming light, reducing contrast and producing soft or hazy output. Beaded water covers less surface area and clears more easily.
| Coating | Mechanism | Water source it addresses | Wrong choice when |
|---|---|---|---|
| Hydrophobic | Lowers surface energy so water beads and rolls off | External rain, road spray, and wash-down on the front element | The water comes from internal condensation |
| Hydrophilic anti-fog | Encourages water to spread into an optically uniform film | Enclosed condensation and fogging on a surface | Specified for rain or splash without wetting, durability, and contamination testing on the actual exposure |
| BBAR (broadband anti-reflective) | Reduces Fresnel reflection and flare at air-glass interfaces | None; it manages light throughput, not water | Used as a stand-in for water management |
Neither wetting strategy is automatically right outdoors. A hydrophobic surface sheds beads faster, while a hydrophilic anti-fog surface can hold a thin, optically uniform film instead of the scattering droplets that a partly wetted surface produces. Which one wins depends on the surface, the contamination present, and how the coating ages, so test both against the exposure the camera will actually see.
Hydrophobic coating is a durability and image-quality hedge, not a guarantee. It reduces how much of the front surface stays wet and shortens the time before water clears, but it does not make a lens immune to heavy rain, and it does not seal the barrel: water can still reach internal optics through an unsealed thread interface. Persistent contamination such as mineral deposits still requires physical cleaning.
Evaluating a datasheet claim means checking that the coating is specified on the front outer surface rather than an internal element, confirming a separate IP rating exists if barrel ingress is a risk, and reading any stated water contact angle in context: above about 90° is the conventional hydrophobic boundary, but a single static angle does not establish shedding performance on its own.
疎水性コーティングが真価を発揮する場面
The clearest cases are forward-facing outdoor cameras in rain or spray (vehicle-mounted, agricultural, or traffic cameras) and wash-down lines in food, beverage, and pharmaceutical plants. There, the front element must shed residual water quickly after each cleaning cycle rather than carrying a film into the next. A hydrophobic-coated front element also helps shed airborne particulates between cleanings, which extends the interval before manual cleaning; oil resistance is a distinct, oleophobic property that not every hydrophobic coating provides, so confirm it on the datasheet when oils are a concern.
振動、衝撃、および機械的安定性
Vibration and shock affect a machine vision lens through three failure modes: focus-lock adhesive loosening, internal elements shifting under sustained vibration load, and the barrel-to-camera thread interface working loose. Vehicle-mounted cameras, conveyor-mounted inspection systems, robotics, and any mount with continuous mechanical disturbance put a lens through this stress continuously. It is not an occasional event.
Mobile robotics combines continuous motor and wheel vibration with thermal cycling from motor and battery heat and repeated shock from uneven terrain. For robot-mounted and vehicle-mounted systems, request vibration and shock qualification data from Commonlands rather than treating vibration resistance as implied by sealed, all-glass construction. Sealing and thermal stability do not confirm that bonded elements hold position under sustained mechanical load.
密閉型レンズで十分な場合と、ハウジングが依然として重要な場合
An external housing is still needed when retrofitting existing camera hardware with no IP protection of its own, when the deployment environment exceeds what the lens IP rating covers, or when the application requires protection beyond ingress sealing. That protection might mean EMI shielding, resistance to a specific solvent, or a serviceable protective window in front of the optics.
A housing carries real costs: a protective window adds two air-glass surfaces (roughly 8% transmission loss uncoated, versus about 1% with a BBAR coating), and enclosures typically add 200–500g and meaningful bulk, which matters for drones and robot arms. Where the environmental requirement is known from the start and ingress is the whole of it, a sealed Commonlands lens paired with a sealed camera module often costs less and images better than adding an enclosure.
The trade reverses as soon as the requirement widens. Impact protection, chemical exposure, EMI shielding, pressure or altitude limits, a sacrificial window that a technician can replace in the field, and serviceability generally all favor a housing, and the qualification that decides the argument is run on the assembled system rather than on the lens alone.
Commonlandsの耐環境型レンズの事例
Top 3 ruggedized machine vision lenses
Commonlands builds and tests a select group of M12 lenses for harsh environments. The three below each carry a verified IP rating from IP67 to IP69K or IP6K9K. Most Commonlands lenses are specified for stable indoor conditions and standard handling, so ruggedization is a per-SKU property confirmed on each product page, never a guarantee that attaches to the M12 or C-mount family as a whole. The automotive M12 collection is the fastest place to filter to the sealed, wide-temperature-range models.
| ランク | レンズ | マウント | シーリング | 熱安定性に関する注意事項 | 最適な環境 |
|---|---|---|---|---|---|
| 1 | CIL190（19mm） | M12 | IP69K | 密閉型ウォッシュダウンバレル。データシートで許容温度範囲を確認してください。 | 食品・医薬品分野におけるウォッシュダウン検査（より長い距離からの検査） |
| 2 | CIL034 M12A (3.25mm) | M12 | IP67 | Hybrid 4G2P in an aluminum barrel; request thermal focus shift data | 一般的な屋外および産業用密閉型イメージング |
| 3 | CIL079 (7.8mm) | M12 | IP67 | 耐熱処理済み、全ガラス製、密閉型 | 農業用および車両搭載型の中距離イメージング |
よくある質問
Select Commonlands lenses carry IP-rated sealing and thermally stable construction. These answers define what ruggedized actually means.
温度はマシンビジョン用レンズの焦点にどのような影響を与えるのでしょうか？
Temperature change moves a lens's focal plane through three simultaneous first-order mechanisms. The barrel and spacers expand or contract by their coefficient of thermal expansion. The glass refractive index shifts with temperature (dn/dT). The glass elements themselves change size, which alters their radii, thickness, and optical power.
CTE mismatch acts in two ways. Axially, differential expansion between barrel, spacers, and glass moves the rear focal point, and the sensor does not hold still either: die, PCB, standoffs, and mount expand too, so defocus follows the relative motion between focal plane and sensor surface plus the index change in the glass. Radially, at mounts and bond lines, it adds mechanical stress that produces asymmetric aberration and, over many cycles, bond fatigue.
Whether the mechanical term or dn/dT dominates depends on the design. The magnitude of the resulting focus shift scales with the size of the temperature swing. The direction of shift is design-dependent, driven by which materials and element positions are used, not a fixed rule.
非熱レンズとは何ですか？
An athermal lens is an optical assembly designed so thermal focus shift is reduced, not eliminated, keeping the image within an acceptable sharpness window across the rated temperature range. Passive athermalization uses material choice and element spacing so mechanical and optical thermal effects partially cancel rather than add. It requires no motor or power. Active refocus, which does use a motor, is a separate approach for a different problem.
疎水性レンズコーティングとは何ですか？
疎水性レンズコーティングとは、レンズの前面外側に施される撥水性の表面処理であり、通常はフッ素樹脂またはシリカを主成分とする薄い層で構成されています。 これにより表面エネルギーが低下し、水が膜状に広がって光を散乱させ、コントラストを低下させるのを防ぎ、水滴となって転がり落ちます。洗浄サイクルの合間にも水をはじき、表面の汚れを防ぐ効果がありますが、これは耐久性を高めるための対策であり、あらゆる汚れや浸入を完全に防ぐ保証ではありません。また、レンズバレルのシーリングに代わるものでもありません。
疎水性コーティングは、IP等級の代わりになるのでしょうか？
いいえ。撥水コーティングは前面の外表面のみに施されるものであり、レンズバレル、ネジ部、フォーカスリングの接合部を水やほこりの侵入から密閉するものではありません。前面に撥水コーティングが施されているだけで、密閉されていないレンズは、依然として内部に湿気が侵入する可能性があります。IP規格に基づく密閉構造と撥水コーティングは、互いに補完し合う機能であり、同じ製品に併せて採用されることが一般的ですが、それぞれが対処する故障モードは異なります。密閉に関する詳細については、「マシンビジョン用レンズのIP等級」をご覧ください。
M12マウントやCマウントのレンズはすべて、耐環境型とみなされますか？
いいえ。耐環境性（密閉構造、熱的に安定した構造、撥水コーティング、および振動試験）は、M12マウントおよびCマウントの両シリーズのうち、この目的のために特別に設計・試験された特定のレンズにのみ適用されます。いずれのマウントシリーズの標準的な屋内用レンズも、自動的に屋外や洗浄環境での使用に適しているわけではありません。耐環境性を前提とする前に、各製品のIP等級、構造材料、およびコーティング仕様を確認してください。
