All Glass No-Distortion 4mm M12 Lens for up to 1/2" sensors such as IMX577 IMX477
低ディストーション3.8mm M12レンズ

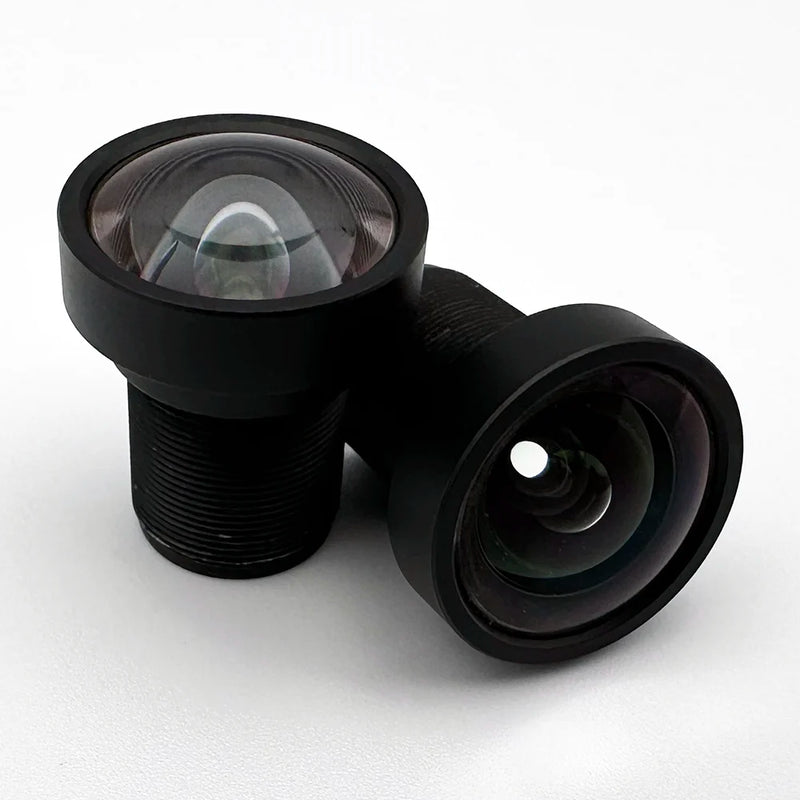

The CIL038 is a 3.8mm All Glass Low Distortion M12 lens for up to 1/2.3" 5MP sensors. The all-glass design makes this lens great for applications requiring thermal stability. Combined with the low distortion, the CIL038 is optimal for wide-angle computer vision applications.
In stock — orders before 12 PM PST ship same day
レンズの特徴
ディストーションなし
<1% TV distortion for an outstanding normal image.
全球面ガラス
温度に対するコストパフォーマンスに優れた全球面ガラス設計
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL038 |
| イーエフエル | 3.85 |
| F# | 3.0 |
| 決議 | 4-5MP(3um) |
| 視野 | 85° @ 7.0mm — Calculate FoV for your sensor |
| イメージサークル | 設計値7.8mm、最大イメージサークル8.2mm |
| ディストーション | '<1% TV @ 7.0mm image circle |
| 重量 | 9.4g |
| IRカットフィルター | P/N With: CIL038-F2.8-M12A650 P/N Without: CIL038-F2.8-M12ANIR |
| 建設 | 8G |
メカニカル・バリエーション
| バリアント | 説明 |
|---|---|
| M12A | イングレスプロテクションなし、レンズ1表面1にBBAR、AL6061キャップ+バレル |
メカニカル・レイアウト
カメラ・メカニカル互換性表
| カメラ/マウント | 互換性 |
|---|---|
| Commonlands CLA024 | CLA024 |
| イーコンシステムズ Sマウント | 7mm-13m高マウント |
| アライドビジョン アルビウムSマウント | はい |
| FLIR Blackfly S ボード | はい |
| iDS uEye LE | Rev1.1: Yes, Rev1.2: PN ending in C-NO |
| イメージング・ソース M12 | はい |
| D3カメラモジュール | D3エンジニアリングへのお問い合わせ |
*カメラメーカーが提供する標準M12x0.5レンズマウントを前提とした機械的互換性のみ。光学的な互換性は別途ご確認ください。
Frequently asked questions
What sensors does the CIL038 no-distortion 4mm M12 lens support?
The CIL038 supports 1/2 inch to 1/2.3 inch sensors up to 5MP at 3μm pixel pitch. Sony IMX577 and IMX477 sensors are good matches, and the 7.8mm designed image circle covers those formats with margin.
How much distortion does the CIL038 have?
The CIL038 has less than 1% TV distortion at the 7.0mm image circle. That is very low for an 85° lens, so many measurement, barcode, and inspection setups can skip software correction.
Why is all-glass construction important on the CIL038?
The all-glass optical stack holds focus more consistently over temperature than plastic-hybrid designs. That matters in industrial environments where thermal cycling can move a cheaper lens out of focus.
Is the CIL038 compatible with the Raspberry Pi HQ Camera?
Yes. The IMX477 in the Raspberry Pi HQ Camera is a 1/2.3 inch format, and the CIL038 covers it. You will need an M12-to-CS adapter or a direct M12 mount board, and you should still check mechanical back focal length before ordering.
Which lens holder works with the CIL038?
The Commonlands CLA024 is one compatible holder, and other mounts work as well. e-con Systems boards can also use a 7-13mm tall mount, and FLIR Blackfly S, Allied Vision Alvium, and iDS uEye LE cameras are mechanically compatible.
Does the CIL038 ship same day from the US?
Yes. Commonlands ships in-stock lenses same day from San Diego for orders placed before 12 PM PST.
