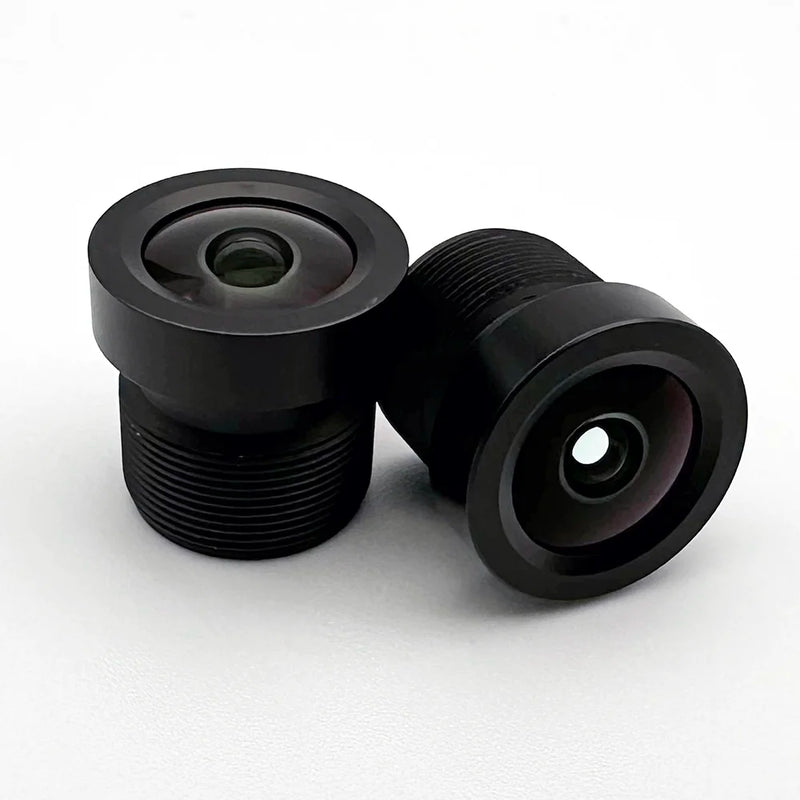

Ingress Protected M12 Lens For Up To 1/2.3" such as ISX031 and IMX623
IP69K広角3.5mm M12レンズ
CIL394は、ISX031およびIMX623の100°HFoVを備えた最大3MP 1/2.4 "センサー用の車載グレードIP69K広角M12レンズです。レンズはコンパクトで、オールガラス製なので、温度に対して優れた性能を発揮します。
In stock — orders before 12 PM PST ship same day
レンズの特徴
小型フォームファクター
全長17mm、重量3.8gの短いトラックはロボット工学に最適。
オールガラス
広い動作温度範囲で優れた安定性
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL394 |
| イーエフエル | 3.45 |
| F# | 2.1 |
| 視野 | 135° @ 7.6mm image circle — Calculate FoV for your sensor |
| ディストーション | -6.3% F-θ |
| 重量 | 3.8g |
| IRカットフィルター | P/N あり: CIL394-F2.1-M12A650 P/N なし：CIL394-F2.1-M12ANIR |
| 建設 | アルミニウム・バレル付きオール・ガラス |
メカニカル・バリエーション
| バリアント | 説明 |
|---|---|
| M12A | IP69K、AL6061バレル |
メカニカル・レイアウト
カメラ・メカニカル互換性表
| カメラ/マウント | 互換性 |
|---|---|
| Commonlands CLA021 | — |
| イーコンシステムズ Sマウント | — |
| アライドビジョン アルビウムSマウント | — |
| FLIR Blackfly S ボード | — |
| iDS uEye LE | — |
| イメージング・ソース M12 | — |
| バスラー・ダートSマウント | — |
*カメラメーカーが提供する標準M12x0.5レンズマウントを前提とした機械的互換性のみ。光学的な互換性は別途ご確認ください。
Frequently asked questions
What sensors work with the CIL394 IP69K M12 lens?
The CIL394 supports 1/2.3 inch and 1/2.4 inch sensors including the Sony ISX031 and IMX623. It resolves 3MP at 2.1µm pixel pitch across a 7.6mm image circle.
What is the field of view of the CIL394?
The CIL394 delivers 135 degrees field of view at 7.6mm image circle. For your specific sensor, use the Commonlands M12 lens calculator at https://commonlands.com/pages/camera-field-of-view-calculator to get exact horizontal and vertical angles.
Is the CIL394 rated for outdoor and automotive use?
Yes. The CIL394 carries an IP69K rating, meaning it withstands high-pressure steam jets, full dust ingress protection, and temporary submersion. The sealed aluminum barrel and all-glass optics handle automotive, agricultural, and outdoor robotics environments.
What cameras are mechanically compatible with the CIL394?
The CIL394 is mechanically compatible with e-con Systems standard S-mount boards (9-13mm holder), Allied Vision Alvium, FLIR Blackfly S board-level, iDS uEye LE (Rev1.1 and Rev1.2), and The Imaging Source M12 cameras. Use the Commonlands CLA021 lens holder for mounting.
What is the difference between the 650 and NIR variants of the CIL394?
The CIL394-F2.1-M12A650 includes a 650nm IR cut-off filter for standard daylight imaging. The CIL394-F2.1-M12ANIR ships without a filter, allowing near-infrared sensitivity for night vision or NIR illumination applications.
Does the CIL394 ship same day from the US?
Yes. In-stock orders placed before 12 PM PST ship same day from our San Diego warehouse. Contact us for volume pricing on the CIL394 for automotive programs.
