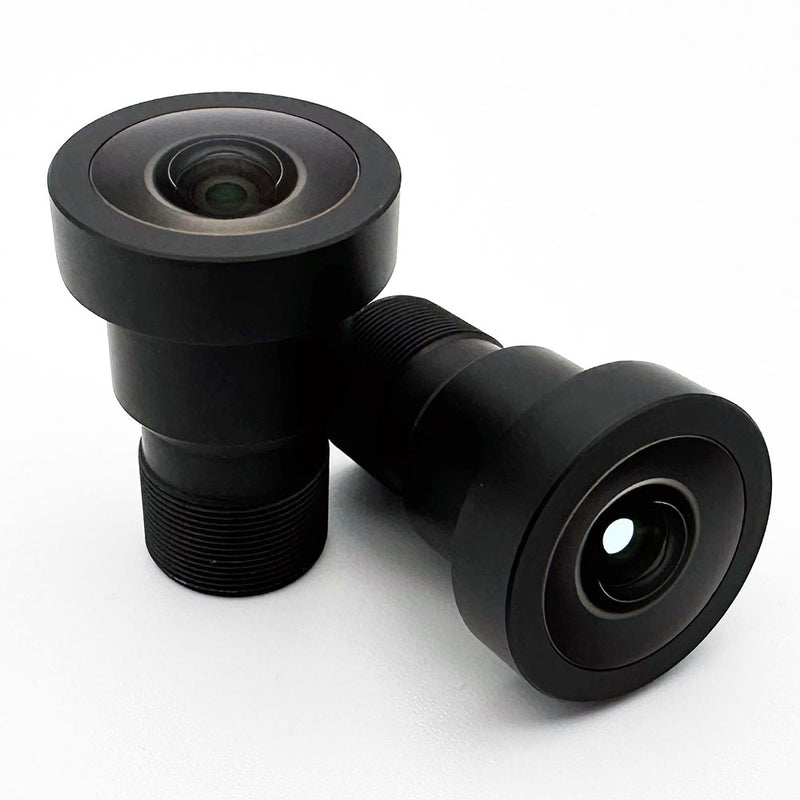

センサーOX08B40、IMX678、AR0822用広角オートモーティブ1/1.7" 8MP M12レンズ
広角4mm M12レンズ
In stock — orders before 12 PM PST ship same day
レンズの特徴
ローゴースト
安全上重要なシーンで要求されるハイダイナミックレンジに最適化された迷光。
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL341 |
| イーエフエル | 4.0 |
| F# | 2.0 |
| 決議 | 8MP-10MP |
| 視野 | 124° @ 8.0mm image circle — Calculate FoV for your sensor |
| イメージサークル | 9.2mm以上 |
| ディストーション | -8% F-Θ |
| 重量 | 11.4g |
| IRカットフィルター | P/N With: CIL341-F2.0-M12A650 P/N Without: CIL341-F2.0-M12ANIR |
| 建設 | オールガラス、アルミニウム |
メカニカル・バリエーション
| バリアント | 説明 |
|---|---|
| M12A | IP69K、レンズ表面1疎水性、AL6061キャップ+バレル |
メカニカル・レイアウト
カメラ・メカニカル互換性表
| カメラ/マウント | 互換性 |
|---|---|
| Commonlands CLA024 | CLA024 |
| イーコンシステムズ Sマウント | 高さ10mm～13mmのホルダー |
| アライドビジョン アルビウムSマウント | はい |
| FLIR Blackfly S ボード | はい |
| iDS uEye LE | Rev1.1：はい、Rev1.2: はい |
| イメージング・ソース M12 | はい |
| バスラー・ダートSマウント | はい |
*カメラメーカーが提供する標準M12x0.5レンズマウントを前提とした機械的互換性のみ。光学的な互換性は別途ご確認ください。
Frequently asked questions
What sensors does the CIL341 automotive M12 lens support?
The CIL341 supports 1/1.7 inch sensors up to 8-10MP including the OmniBSI OX08B40, Sony IMX678, Sony IMX676, and ON Semiconductor AR0822. Its 9.2mm+ image circle covers those formats with margin.
Is the CIL341 IP69K waterproof?
Yes. The CIL341 M12A variant is IP69K rated with a hydrophobic coating on the first lens surface, so it handles high-pressure washdown, rain, dust, and direct outdoor exposure.
What makes the CIL341 suitable for automotive surround-view systems?
The CIL341 uses all-glass construction with two molded glass aspheres, which helps it stay stable across automotive temperature ranges. Its 124° field and stray-light control also suit surround-view and ADAS cameras that see headlights and direct sun.
What cameras are compatible with the CIL341 4mm M12 lens?
The CIL341 mounts on FLIR Blackfly S, Allied Vision Alvium, iDS uEye LE, The Imaging Source M12, and Basler Dart embedded vision cameras. The Commonlands CLA024 holder works for e-con Systems boards, and other compatible mounts are available.
Does the CIL341 automotive M12 lens ship same day?
Yes. In-stock orders placed before 12 PM PST ship same day from our San Diego warehouse.
What is the distortion on the CIL341 wide-angle M12 lens?
The CIL341 has -8% F-Θ distortion across the full image circle. That is typical for a 124° automotive lens, and wide-angle pipelines usually calibrate it in software.
