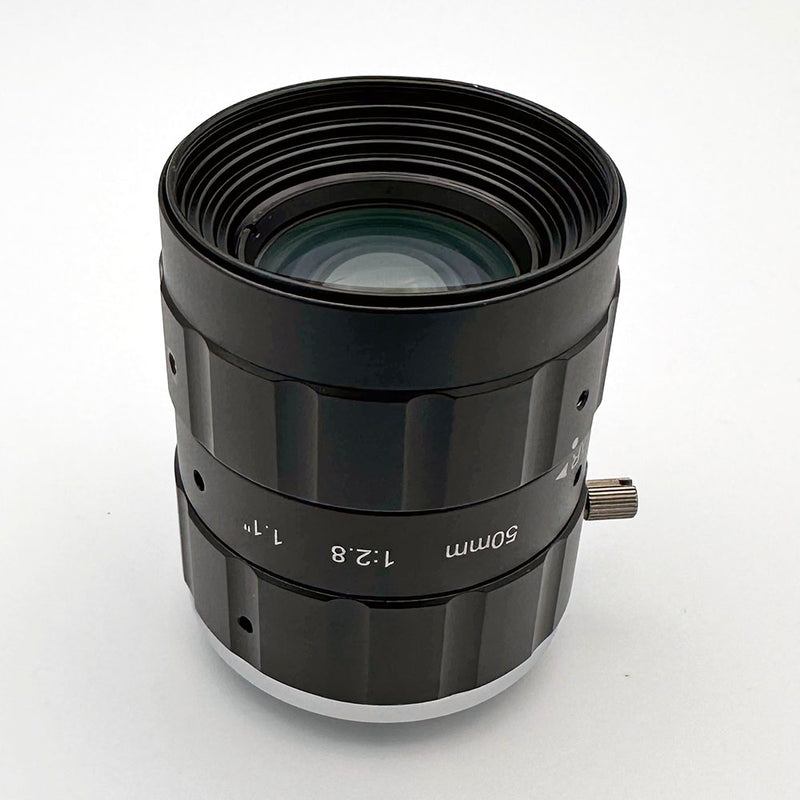

50mm C-Mount lens for up to 20MP 1.1" Sensors
50mm Cマウントレンズ 1.1インチ 20MP以上
CIL546は、IMX540のようなピクセルピッチ2.74umの1.1インチ20MP+センサー用の50mm Cマウントレンズである。F2.8はF16まで調整可能。最短撮影距離は250mm。
In stock — orders before 12 PM PST ship same day
レンズの特徴
高解像度
Suitable for 2.74um pixel pitch at F/2.8
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL546 |
| イーエフエル | 50.0 |
| F# | 2.8 |
| 視野 | 20° @ 17.6mm — Calculate FoV for your sensor |
| ディストーション | 0.0007 |
| 重量 | 127g |
| 建設 | オールガラス |
メカニカル・レイアウト
Frequently asked questions
What sensors does the CIL546 50mm C-mount lens support?
The CIL546 fits 1.1 inch sensors with 2.74µm pixel pitch at 20MP and above. It works well with the IMX540 and comparable area scan sensors, and the 17.6mm image circle fully covers the 1.1 inch format.
How much distortion does the CIL546 have?
Distortion measures 0.07%, which is effectively zero. You do not need software correction for most metrology, gauging, or precision measurement work at that level.
What is the CIL546 minimum working distance?
The minimum working distance is 250mm. The CIL546 is optimized from 250mm to infinity, so it works well in telephoto setups that need tight framing at distance.
Can I adjust the aperture on the CIL546 50mm lens?
Yes, the aperture adjusts from F/2.8 to F/16. Stopping down adds depth of field, but it costs you light, which is the usual tradeoff in parts inspection. You can use depth of field calculator to model your setup.
Does the CIL546 include a filter thread?
Yes, the CIL546 has an M35.5x0.5 filter thread. It accepts standard machine vision bandpass, polarization, and neutral density filters.
Does the CIL546 ship same day from the US?
Yes, Commonlands ships in-stock lenses same day from San Diego for orders placed before 12 PM PST. You can contact us for current CIL546 stock levels and volume pricing.
Similar C‑Mount Lenses: 4mm – 75 mm Industrial Optics
