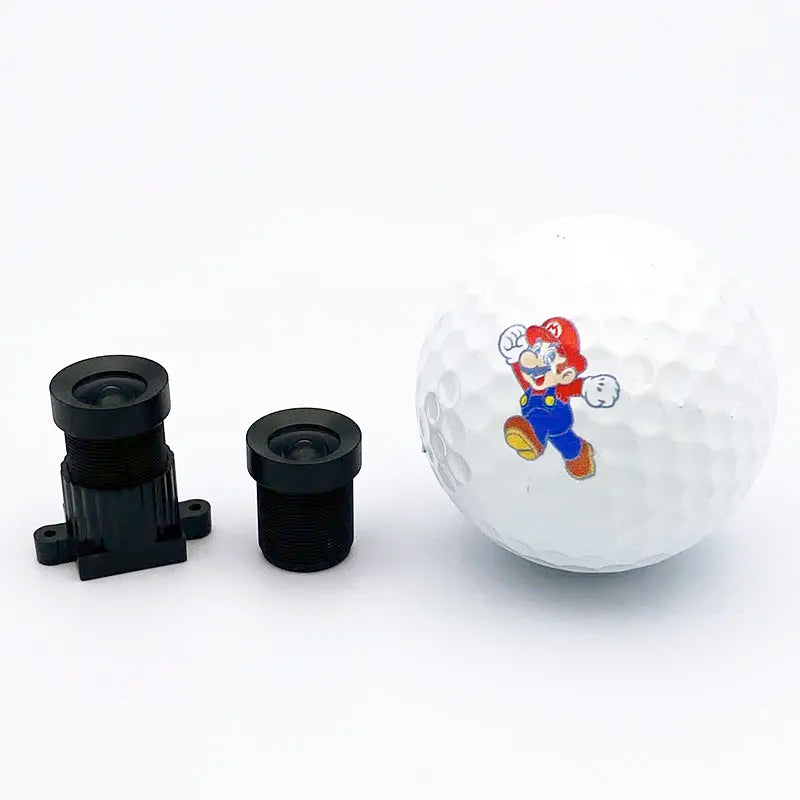

Low Distortion 4.5mm M12 Lens\|For up to 5MP sensors with 2.2um pixels such as MT9P031
Low Distortion 4.5mm Lens
In stock — orders before 12 PM PST ship same day
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL045 |
| イーエフエル | 4.5 |
| F# | 3.5 |
| 決議 | 5MP, 2.2μm |
| 視野 | 68° @ 6.0mm image circle — Calculate FoV for your sensor |
| イメージサークル | 7.2mm |
| ディストーション | -0.9% Rectilinear, +0.4% TV |
| 重量 | 5g |
| IRカットフィルター | P/N With: CIL045-F3.5-M12A650 P/N Without: CIL045-F3.5-M12ANIR |
| 建設 | 3G2P |
メカニカル・バリエーション
| バリアント | 説明 |
|---|---|
| M12A | イングレスプロテクションなし、レンズ1表面1にBBAR、AL6061キャップ+バレル |
メカニカル・レイアウト
カメラ・メカニカル互換性表
| カメラ/マウント | 互換性 |
|---|---|
| Commonlands CLA019 | — |
| イーコンシステムズ Sマウント | — |
| アライドビジョン アルビウムSマウント | — |
| FLIR Blackfly S ボード | — |
| iDS uEye LE | — |
| イメージング・ソース M12 | — |
| バスラー・ダートSマウント | — |
*カメラメーカーが提供する標準M12x0.5レンズマウントを前提とした機械的互換性のみ。光学的な互換性は別途ご確認ください。
Frequently asked questions
What sensors does the CIL045 4.5mm M12 lens support?
The CIL045 resolves 5MP at 2.2μm pixel pitch and covers sensors up to 1/1.9 inch format. ON Semi MT9P031 is the primary target. Check field of view at field of view calculator
How much distortion does the CIL045 have?
The CIL045 keeps distortion under 1% in both metrics, with -0.9% rectilinear and +0.4% TV distortion. That is low enough for machine vision measurement and barcode reading.
What is the field of view of the CIL045 on a 1/2.3 inch sensor?
The CIL045 gives 68° field of view at the 6.0mm image circle on 1/2.5 inch sensors. Its 7.2mm total image circle reaches up to 1/1.9 inch format, with vignetting at the edges.
What lens holder works with the CIL045?
The Commonlands CLA019-LCP with 18mm spacing is the recommended holder. e-con Systems boards need a 10-15mm tall holder, and FLIR, Allied Vision, iDS, The Imaging Source, and Basler boards are mechanically compatible.
Does the CIL045 come with an IR cut filter option?
Yes, the CIL045-F3.5-M12A650 includes a 650nm IR cut filter for visible-light use. The CIL045-F3.5-M12ANIR ships without a filter for NIR-sensitive applications.
Does the CIL045 ship same day from the US?
Yes, in-stock CIL045 lenses ship same day from San Diego for orders placed before 12 PM PST. Every unit is 100% MTF tested.
