カメラモジュール向けのアクティブアライメント：センサーの傾き、6自由度（6-DOF）の誤差許容範囲、およびUV硬化による組立
This guide explains what active alignment is, why thread-and-lock assembly runs out of adjustment at high resolution, how to build the 6-DOF error budget, and how the UV-cure process locks lens-to-sensor position.
Active alignment (AA) positions the lens relative to the powered image sensor in up to six degrees of freedom while scoring through-focus sharpness on live video, a system SFR measurement of the assembled lens and sensor rather than the lens MTF a datasheet publishes, then locks the position with UV-cure adhesive. It replaces thread-and-lock assembly when corner focus must survive tilt, decenter, and defocus tolerances a threaded interface cannot control.
Sensor alignment is the underlying requirement: nominally the sensor sits perpendicular to the lens optical axis, centered on it, and at the designed axial distance, though a best-fit alignment may hold a deliberate offset. This guide covers both, plus the diagnostics that separate real misalignment from field curvature.
アクティブ・アライメントとは何ですか？
The word "active" distinguishes the process from passive assembly, which relies on dimensional tolerances: machine the parts accurately, stack them, and accept the optical result. Active alignment closes the loop on the measured image instead. Because the sensor is powered and streaming, the machine aligns each lens to the true position of that specific die, absorbing the placement and stack-up tolerances a threaded build leaves uncorrected.
The move is rigid-body, so element tilt and decenter inside the lens, wedge in the sensor package or cover glass, local die warp, and the design's own field curvature all survive it, and adhesive shrinkage can add drift after cure. The station balances the field against those residuals rather than removing them. The MTF curve guide explains the measurement; active alignment runs it inside the assembly loop, on the module's own sensor, for every unit built.
Camera module makers call it AA; optics labs call it active lens-to-sensor alignment. Commonlands runs it for board-level camera module assembly in San Diego.
センサーのアライメントとは何ですか？
Alignment errors accumulate from ordinary manufacturing variation: die placement, solder height after reflow, PCB flatness, holder molding, and thread engagement. Each source is small alone. Combined, they can push the sensor outside the lens design's focus tolerance, and no lens swap or software calibration recovers the loss. Commonlands matches image circle and back focal distance to the sensor so the stack keeps focus margin.
チルト
Tilt means the sensor plane is not orthogonal to the optical axis, so one region sits closer to the in-focus image surface than the opposite. The result is a focus gradient: one side sharp, the other soft.
A clean linear gradient points at tilt, the most diagnosable error, but not necessarily at the sensor: package wedge, a tilted lens element, a skewed holder, or a chart that is not square to the axis all read the same way. Square the target and the fixture first, then run the lens-rotation test in the FAQ below.
Decenter
Decenter is lateral displacement of the sensor from the optical axis. The lens's best-corrected field region shifts relative to the pixel array, so sharpness goes asymmetric and relative illumination falls off around a center the datasheet does not predict.
回転
Rotation is a spin of the sensor about the optical axis. For a rotationally symmetric lens on a rectangular sensor, it rarely changes image quality. It matters for geometry: measurement coordinates rotate and the pixel-to-physical mapping turns with them. A stereo rig keeps its physical baseline, since rotation does not move the optical centers; what changes is each camera's extrinsic orientation, which breaks rectification because the epipolar lines no longer follow sensor rows.
Z軸の高さ誤差
Z-height error places the sensor at the wrong axial distance, moving the focus conjugate off the intended working distance. It produces symmetric defocus, so refocusing resolves it; the giveaway is sharp focus landing at a working distance other than spec. Back focal length tolerances are the usual cause, covered in the back focal length guide.
高解像度では、なぜねじとロックの組み立てだけでは不十分なのでしょうか？
A threaded M12 lens controls one degree of freedom: axial position, set by rotating the lens in its holder. Tilt, decenter, and rotation stay wherever the mechanical tolerances put them. Whether that matters depends on the depth of focus, which the working f-number and the allowed blur circle set together. Near 1.5µm pixels and below, that budget can shrink until thread clearance and board stack-up alone consume the corner focus allowance.

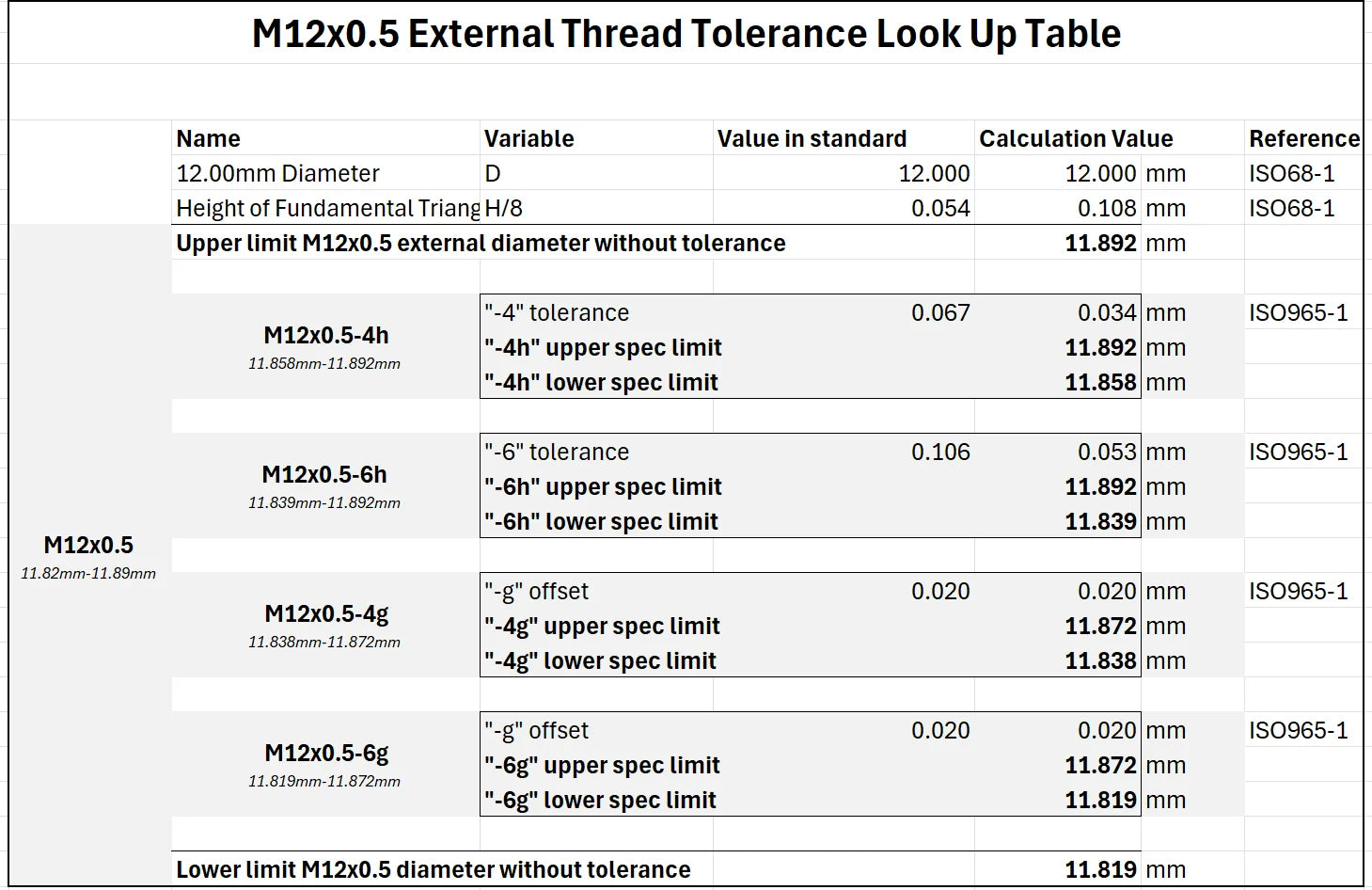

The M12 x 0.5 pitch moves the lens 500µm per full turn, so the thread sets axial focus with micrometer sensitivity. The clearance that lets it turn, set by the ISO metric tolerance classes, also lets the locked lens sit off-axis and tilted, and thread adhesive freezes whatever pose that clearance allowed.
Thread clearance is one contributor among several; every source above stacks into the lens-to-pixel position. The image-side tolerance for that stack is the depth of focus (distinct from object-side depth of field, covered in the depth of focus section of the DOF guide):
Stopping down raises depth of focus in proportion to the working f-number and hides residual misalignment. Legitimate when illumination allows, but it trades light. For object-side planning, use the depth of field calculator.
6自由度（6-DOF）の誤差許容範囲とは何ですか？
A camera module has six rigid-body degrees of freedom between lens and sensor: three translations (X, Y, Z) and three rotations (θx and θy tip and tilt, θz rotation). Z sets focus, X and Y set decenter, tip and tilt set the corner focus gradient, and θz sets geometric registration. An error budget gives each axis a tolerance whose combined image-side effect stays inside the depth of focus at every field point.
Start from the allowed blur circle c, set by pixel pitch and the detection task. Compute the depth of focus, then allocate it: Z placement error, tilt-induced corner shift, and the lens's field curvature residual must sum within δ at every field point. Independent random sources like die placement and holder squareness combine by root-sum-square; the systematic curvature residual adds directly.
Tilt enters that sum through the image height: a tip or tilt of α radians carries one corner toward the lens and the opposite away by the same amount.
Work it on a 1/2.3-inch sensor, where the corner image height r is about 3.95mm. At a working f-number of 2.0 with c = 3µm the budget is δ = ±6µm, so a 1.5 mrad tilt, about 0.09 degrees, lands one corner at +δ and its diagonal partner at -δ. Nothing is left for Z placement or field curvature, which is why tip and tilt take the largest share.
The budget is verified with a through-focus sharpness sweep at the center and four corners: on a threaded build it qualifies the design's passive tolerances, and on an aligned line it runs on every unit as the alignment criterion.
どのような場合に、ネジ式M12構造ではなく、アクティブアライメントを備えたカメラが必要となるのでしょうか？
Prototype with a threaded M12 build first: it proves the sensor, field of view, illumination, and processing chain with catalog parts and no tooling. Move to active alignment when corner MTF, unit-to-unit consistency, or a tilt-sensitive wide-angle design pushes yield below target with passive tolerances.

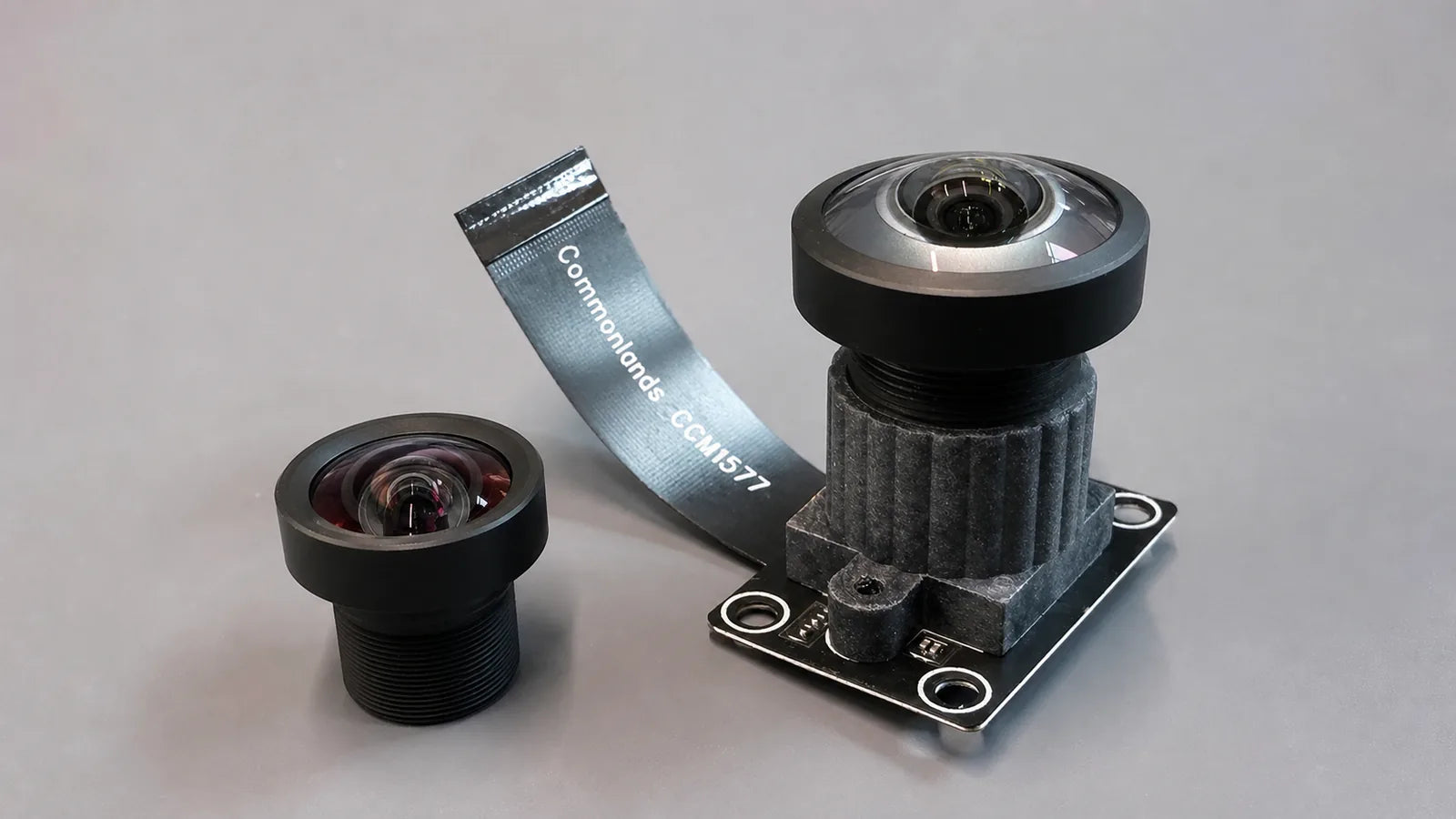

The threaded workflow is fast: pick a stock lens from the M12 lens collection, thread it into a holder, focus on a live image, and lock it. Modules with a more forgiving focus budget routinely ship threaded and hold spec.
C-mount systems mostly sit outside this decision, though not because the lens refocuses. The camera vendor sets the sensor pose behind a standardized 17.526mm flange, so the integrator has no lens-to-sensor alignment to make. Refocusing, by cam on many industrial C-mount designs or by unit focus on others, moves the focus conjugate only: sensor tilt, decenter, rotation, and package wedge still take mechanical rework, and stereo extrinsics still need calibration. Active alignment is a board-level module process.
| 因子 | M12ネジ式・ロック付き | アクティブアライメント |
|---|---|---|
| 制御される自由度 | Z軸のみ、スレッド回転による | 最大で6つすべて |
| コーナーでのフォーカスの安定性 | 受動部品の積層公差による制約 | Set per unit on the measured sharpness score |
| 設備 | フォーカスターゲットと手工具 | AAステーション、接着剤塗布、UV硬化 |
| 単位コストとサイクルタイム | 最低 | 高値、出来高ベースで償却 |
| 手直し | ネジロック剤が硬化するまでは、再度締め付けが可能です | 接着剤の硬化後は恒久的なものとなる |
| 標準的なサイズ感 | Prototypes and moderate corner specs; bigger pixels leave more focus budget | 微細画素の製造、広角コーナーの仕様、ステレオ位置合わせ |
The two paths share parts: a module prototyped with a stock M12 lens moves to actively aligned production on the same optics, so the qualification work carries over. Commonlands has run that progression on a 20,000-unit MIPI module program pairing Sony IMX577 sensors with the CIL227 2.7mm fisheye.
UV硬化型アクティブアライメントプロセスは、どのように機能するのでしょうか？
- Dispense. Adhesive beads go on the holder bond surface or the lens barrel skirt. The glue gap replaces the thread, so it must absorb the full Z tolerance range being corrected.

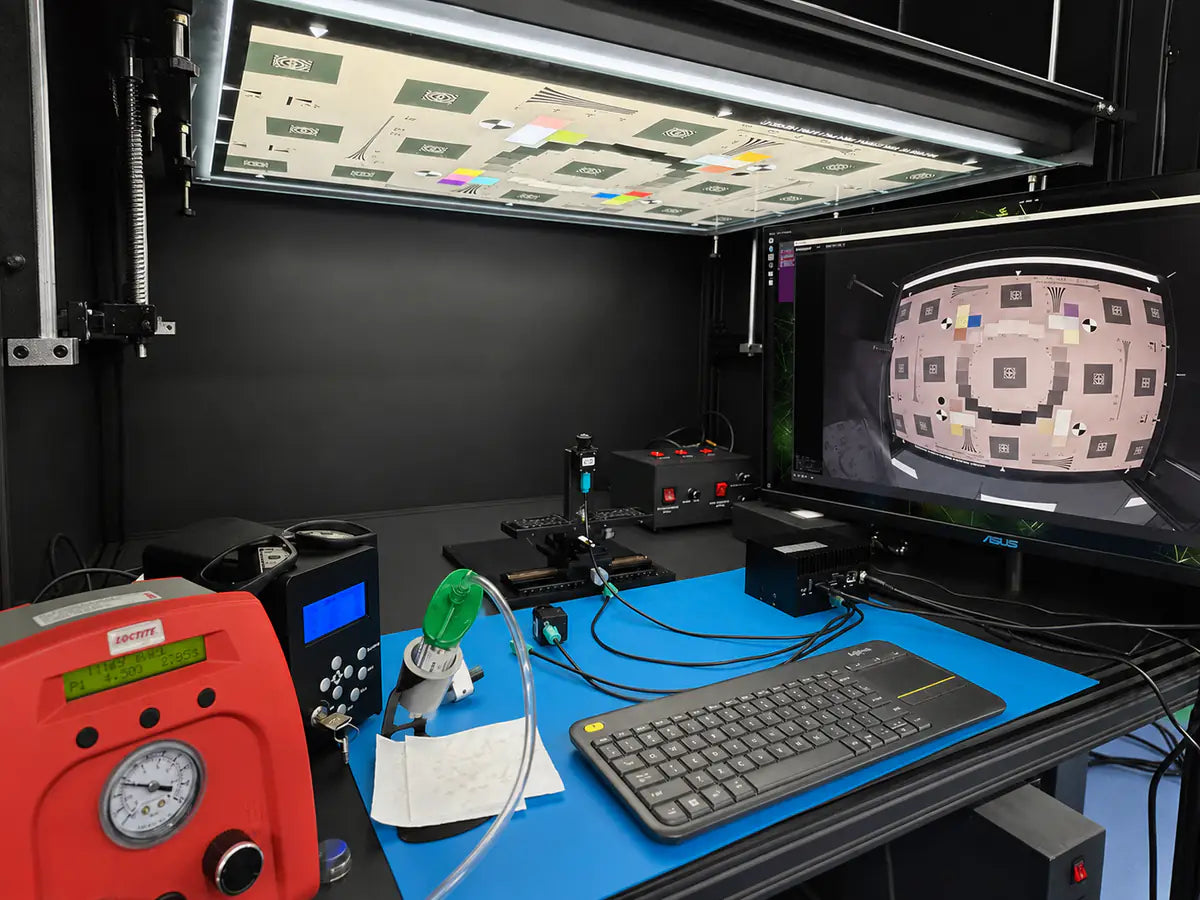

- Grip and coarse-position. A multi-axis gripper places the lens near nominal. The sensor powers on and streams live video to the alignment software.
- Sweep through focus. The station sweeps the lens through Z, computing a system SFR sharpness score at the center and four corner regions of interest on each frame.
- Optimize the pose. Tip, tilt, X, Y, and Z move until center and corner scores peak inside a common window. The merit function balances the field rather than maximizing the center.

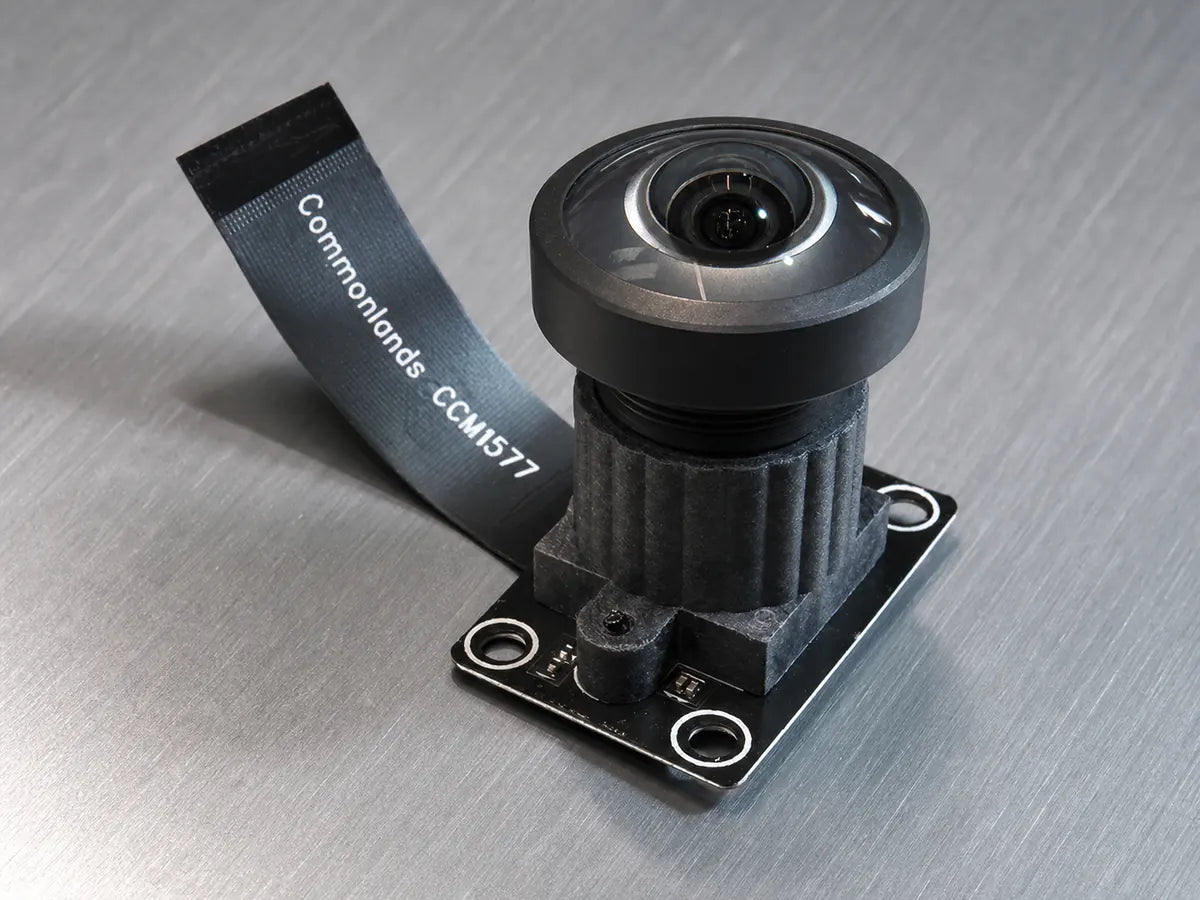

- Cure and verify. UV LEDs gel the joint within seconds while the gripper holds the optimized pose, with the target pre-offset by the characterized cure shrinkage. A thermal post-cure completes cross-linking where the chemistry requires it, then end-of-line through-focus verification.
Adhesive selection drives the process window. UV acrylates cure fastest; modified epoxies, often dual-cure UV plus thermal, are more stable and reach joints the UV light cannot. All shrink during cure, so production measures the post-cure shift on qualification builds and aims off by it.
A cured AA joint has no refocus. Working distance is a design variable early on; a cured module fixes it for the life of the unit. Confirm the final working distance and focus target before committing a production cure.
Find lenses for your camera project
Many Commonlands lenses publish MTF and distortion specs, so asymmetric corner degradation stands out against a known baseline. Where that is not enough, order a measured MTF report through the Trioptics HR2 test report.

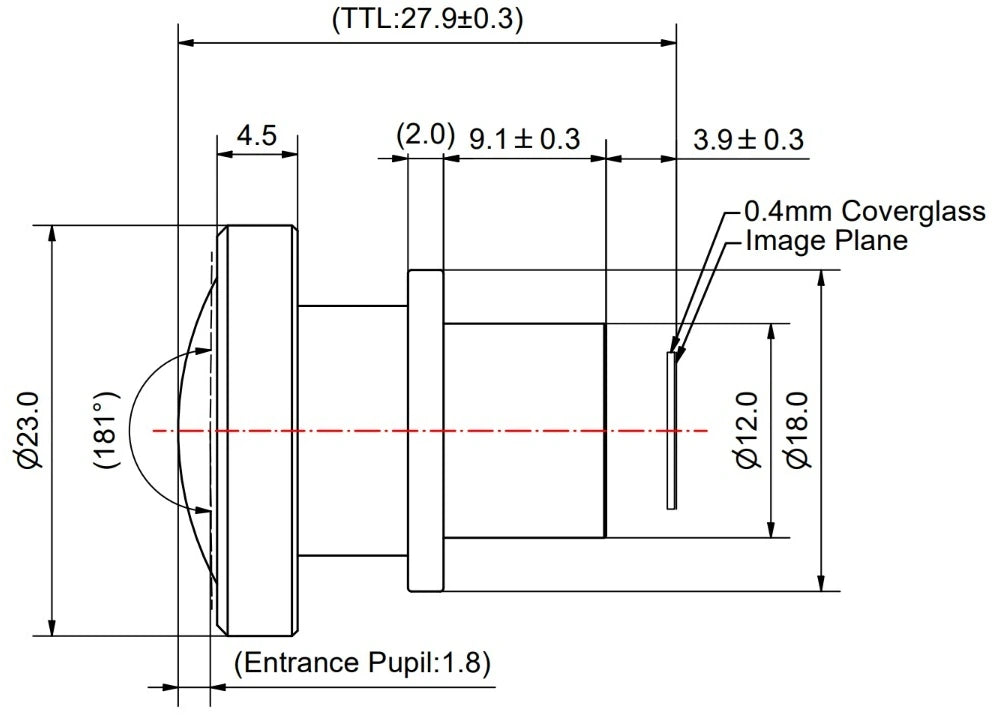

Commonlands also respecifies stock barrels with an active alignment flange, a flat bonding shoulder replacing the M12 thread so an AA station can grip, position, and bond the lens. Send the sensor, holder geometry, and volume for a quote.
カメラモジュールアセンブリ
Commonlands assembles camera modules in a Class 1000 cleanroom in San Diego, from consigned-sensor builds at 100 to 100,000 units per year through custom MIPI CSI-2, DVP, and USB development. Active alignment is available where passive tolerances cannot meet the spec.
よくある質問
Commonlands runs active alignment during camera module assembly in its San Diego cleanroom. These answers reflect that line.
カメラモジュールの製造における「アクティブアライメント」とは何ですか？
Active alignment positions the lens relative to the powered image sensor in up to six degrees of freedom while scoring through-focus sharpness on live video, a system SFR measurement rather than the datasheet lens MTF, then fixes the position with UV-cure adhesive. Each module is aligned to its own measured image, absorbing mechanical tolerances that threaded assembly leaves uncorrected. It cannot correct errors inside the lens or sensor package.
カメラモジュールにおけるセンサーの位置合わせとは何ですか？
Sensor alignment is the mechanical relationship between the image sensor plane and the lens optical axis and image plane. Nominally the sensor sits perpendicular to the axis, centered on it, and at the designed axial distance; unintended departures degrade performance in ways software cannot recover. A best-fit active alignment may hold a deliberate tilt or offset when the lens carries residual asymmetric error, because the target is balanced field MTF, not geometric perfection.
センサーが傾いているかどうかはどうやって確認すればいいですか？
Capture a flat target squared to the optical axis and measure sharpness at the center and four corners. Tilt anywhere in the stack produces an asymmetric focus gradient, one corner sharp and the diagonal partner soft. Rotate the lens 90 degrees, re-seat the thread, and refocus. If the pattern follows the lens across several rotations, the tilt is in the lens; if it stays put, look at the sensor mounting. Barrel runout and fixture motion also change with the turn, so control them first.
アクティブアライメントはどのような場合に必要となるのでしょうか？
Active alignment is typically necessary when corner requirements exceed what passive tolerances deliver: small pixels (often near 1.5 microns and below, though the trigger is the focus budget and the yield it produces, not the pitch alone), wide-angle fixed-focus modules, stereo rigs needing registration, and volume production where unit-to-unit consistency sets yield. Prototype with a threaded M12 build first and move to active alignment when pilot corner MTF falls short.
ソフトウェアでセンサーの傾きを補正することはできますか？
No. Sharpening and deconvolution can raise apparent contrast at moderate spatial frequencies, but they cannot recover content the optics never delivered. Focus information lost to tilt-induced defocus is gone at capture. The fix is mechanical: rework the lens-sensor stack-up or actively align the module during assembly.
