IMX264やIMX547など、最大2/3インチセンサー用の12mm Cマウントレンズ

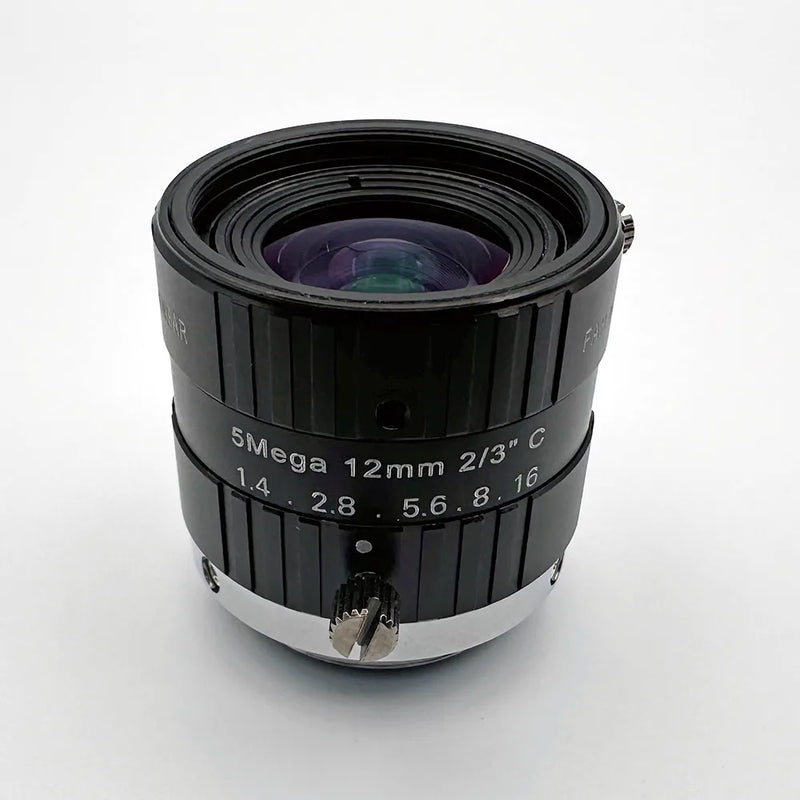

12mm C-Mount Lens 2/3" 3MP
The CIL522 is a fast 12mm C-Mount lens for up to 3MP 2/3" sensors with 4.2um pixel pitch. The aperture is adjustable from F/1.4 to F/16 and the lens has a minimum working distance of 100mm.
In stock — orders before 12 PM PST ship same day
レンズの特徴
5MP Resolution
F1.4で3.45um、F2.8で2.74umのピクセルピッチに適している。
Low F\\#
An fast maximum F\\# of F/1.4 for demanding high speed machine vision applications.
光学・機械仕様表
| レンズパラメーター | パフォーマンス詳細 |
|---|---|
| 品番 | CIL522 |
| イーエフエル | 12.0 |
| F# | 1.4 |
| 決議 | 2-3MP, 4.2μm pixel pitch |
| 視野 | 51° @ 11mm — Calculate FoV for your sensor |
| イメージサークル | 11.4mm |
| ディストーション | 0.4% from Rectilinear |
| 重量 | 60g |
| 建設 | オールガラス |
メカニカル・レイアウト
Frequently asked questions
What sensors work with the CIL522 12mm C-mount lens?
The CIL522 supports 2/3\" sensors up to 3MP at 4.2μm pixel pitch, including the Sony IMX264 and IMX547. At F/2.8, it resolves down to 2.74μm pixel pitch for higher resolution sensors.
What is the aperture range of the CIL522?
The CIL522 aperture adjusts from F/1.4 to F/16. Wide open at F/1.4 for low-light or high-speed applications, stopped down for greater depth of field. Use https://commonlands.com/pages/camera-depth-of-field-calculator to estimate DoF at your working distance.
How much distortion does the CIL522 have?
Distortion is 0.4% from rectilinear across the 11mm image circle. For most machine vision applications, this is low enough to skip software distortion correction.
What is the CIL522 minimum working distance?
Minimum working distance is 150mm. The CIL522 focuses from 150mm to infinity.
Does the CIL522 12mm C-mount lens ship from the US?
Yes. Commonlands ships all in-stock lenses same day from San Diego, California for orders placed before 12 PM PST.
Are mechanical drawings available for the CIL522?
Yes. Mechanical drawings and 3D STP files are available. Contact engineering@commonlands.com for CAD integration files.
